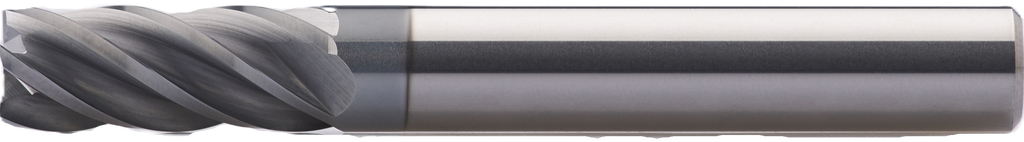

Description
Dimension Table
| EdgeVend Article Number |
Manufacturer Part Number |
Cutting Diameter A1(mm) |
Max Depth of Cut B2(mm) |
Usable Length B4(mm) |
Overall Length B5(mm) |
Shank Diameter C3(mm) |
Number of Teeth z |
Corner Radius G1(mm) |
Corner Chamfer Width G2(mm) |
Corner Chamfer Angle G3(mm) |
Profile Radius G4(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-EM-0000436 | J89 0400 057 06 | 4.0 | 12.0 | 12.0 | 57.0 | 6 | 5 | 0.1 | — | — | — |
| EV-EM-0000437 | J89 0500 057 06 | 5.0 | 13.0 | 13.0 | 57.0 | 6 | 5 | 0.1 | — | — | — |
| EV-EM-0000438 | J89 0600 057 | 6.0 | 13.0 | 13.0 | 57.0 | 6 | 5 | 0.1 | — | — | — |
| EV-EM-0000439 | J89 0800 064 | 8.0 | 20.0 | 20.0 | 64.0 | 8 | 5 | 0.2 | — | — | — |
| EV-EM-0000440 | J89 1000 072 | 10.0 | 22.0 | 22.0 | 72.0 | 10 | 5 | 0.2 | — | — | — |
| EV-EM-0000441 | J89 1200 083 | 12.0 | 26.0 | 26.0 | 83.0 | 12 | 5 | 0.3 | — | — | — |
| EV-EM-0000442 | J89 1600 092 | 16.0 | 32.0 | 32.0 | 92.0 | 16 | 5 | 0.3 | — | — | — |
| EV-EM-0000443 | J89 2000 104 | 20.0 | 38.0 | 38.0 | 104.0 | 20 | 5 | 0.3 | — | — | — |
| Please choose options to see the values. | |||||||||||
| ISO | Material | Operation | Stage | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Ramp max(°) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Start here: Please choose a variant. | |||||||||||||||
