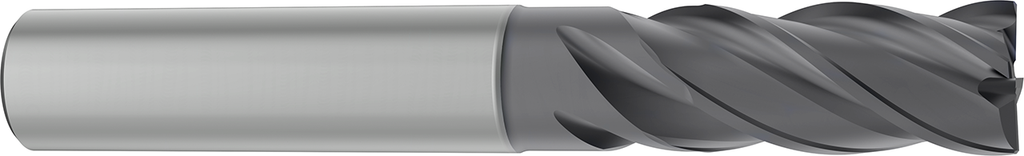

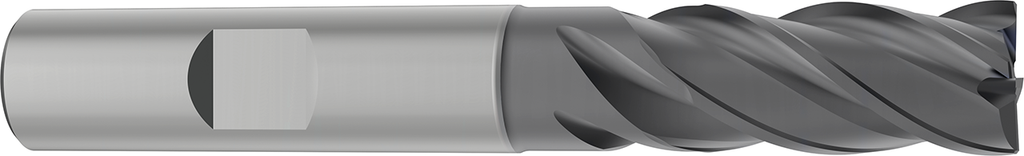

Description
Dimension Table
| EdgeVend Article Number |
Manufacturer Part Number |
Cutting Diameter A1(mm) |
Max Depth of Cut B2(mm) |
Usable Length B4(mm) |
Overall Length B5(mm) |
Shank Diameter C3(mm) |
Number of Teeth z |
Corner Radius G1(mm) |
Corner Chamfer Width G2(mm) |
Corner Chamfer Angle G3(mm) |
Profile Radius G4(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-EM-0000023 | 7429334 | 10.0 | 22.0 | 32.0 | 72.0 | 10 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000024 | 7429343 | 10.0 | 22.0 | 32.0 | 72.0 | 10 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000025 | 7429335 | 12.0 | 26.0 | 38.0 | 83.0 | 12 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000026 | 7429344 | 12.0 | 26.0 | 38.0 | 83.0 | 12 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000027 | 7429336 | 16.0 | 32.0 | 44.0 | 92.0 | 16 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000028 | 7429345 | 16.0 | 32.0 | 44.0 | 92.0 | 16 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000029 | 7429337 | 20.0 | 38.0 | 54.0 | 104.0 | 20 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000030 | 7429346 | 20.0 | 38.0 | 54.0 | 104.0 | 20 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000031 | 7429329 | 3.0 | 6.0 | 9.0 | 54.0 | 6 | 4 | — | 0.075 | 45 | — |
| EV-EM-0000032 | 7429338 | 3.0 | 6.0 | 9.0 | 54.0 | 6 | 4 | — | 0.075 | 45 | — |
| EV-EM-0000033 | 7429330 | 4.0 | 8.0 | 12.0 | 54.0 | 6 | 4 | — | 0.1 | 45 | — |
| EV-EM-0000034 | 7429339 | 4.0 | 8.0 | 12.0 | 54.0 | 6 | 4 | — | 0.1 | 45 | — |
| EV-EM-0000035 | 7429331 | 5.0 | 10.0 | 15.0 | 54.0 | 6 | 4 | — | 0.15 | 45 | — |
| EV-EM-0000036 | 7429340 | 5.0 | 10.0 | 15.0 | 54.0 | 6 | 4 | — | 0.15 | 45 | — |
| EV-EM-0000037 | 7429332 | 6.0 | 13.0 | 21.0 | 57.0 | 6 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000038 | 7429341 | 6.0 | 13.0 | 21.0 | 57.0 | 6 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000039 | 7429333 | 8.0 | 19.0 | 27.0 | 63.0 | 8 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000040 | 7429342 | 8.0 | 19.0 | 27.0 | 63.0 | 8 | 4 | — | 0.2 | 45 | — |
| Please choose options to see the values. | |||||||||||
| ISO | Material | Operation | Stage | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Ramp max(°) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Start here: Please choose a variant. | |||||||||||||||
