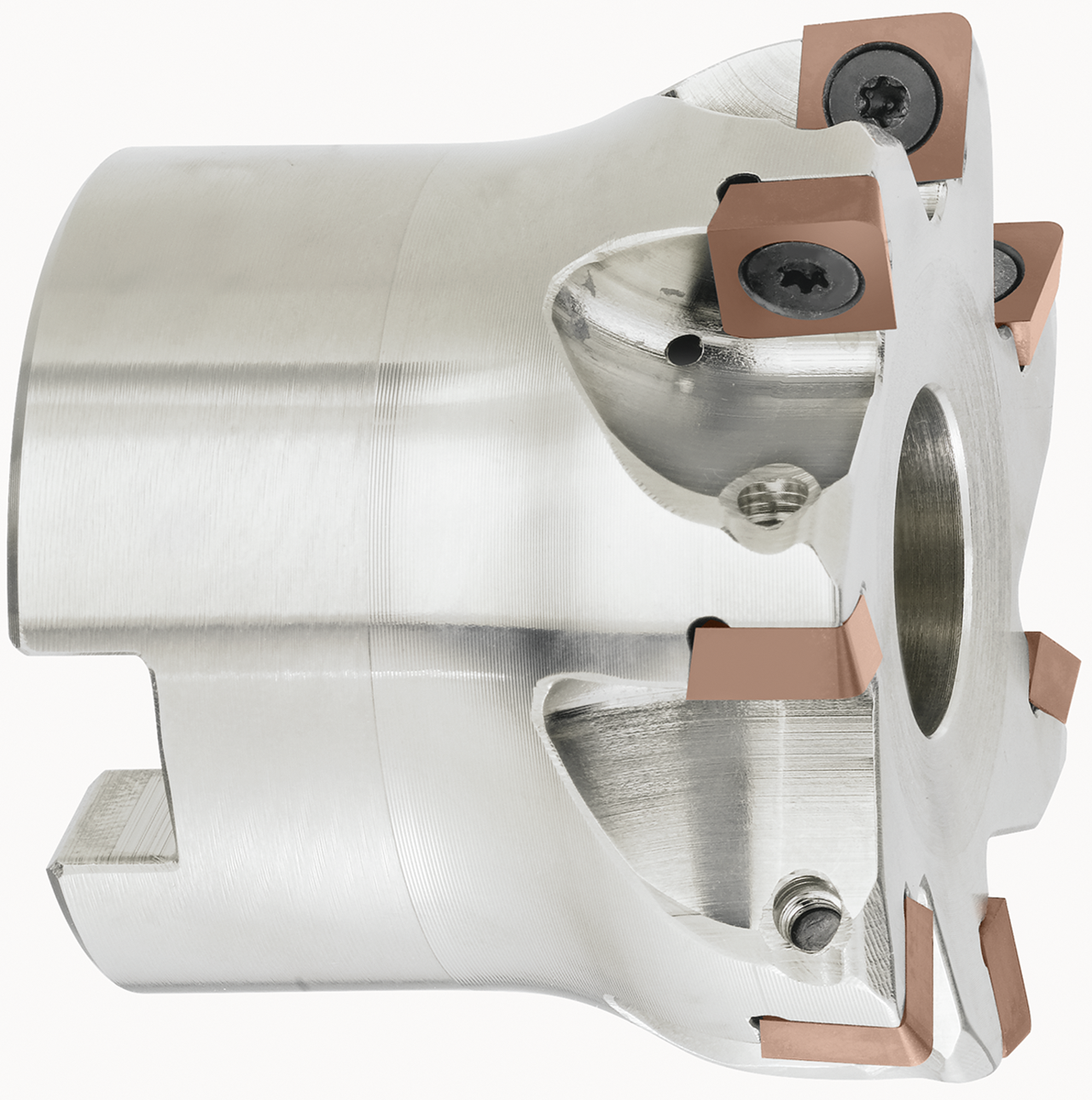

Description

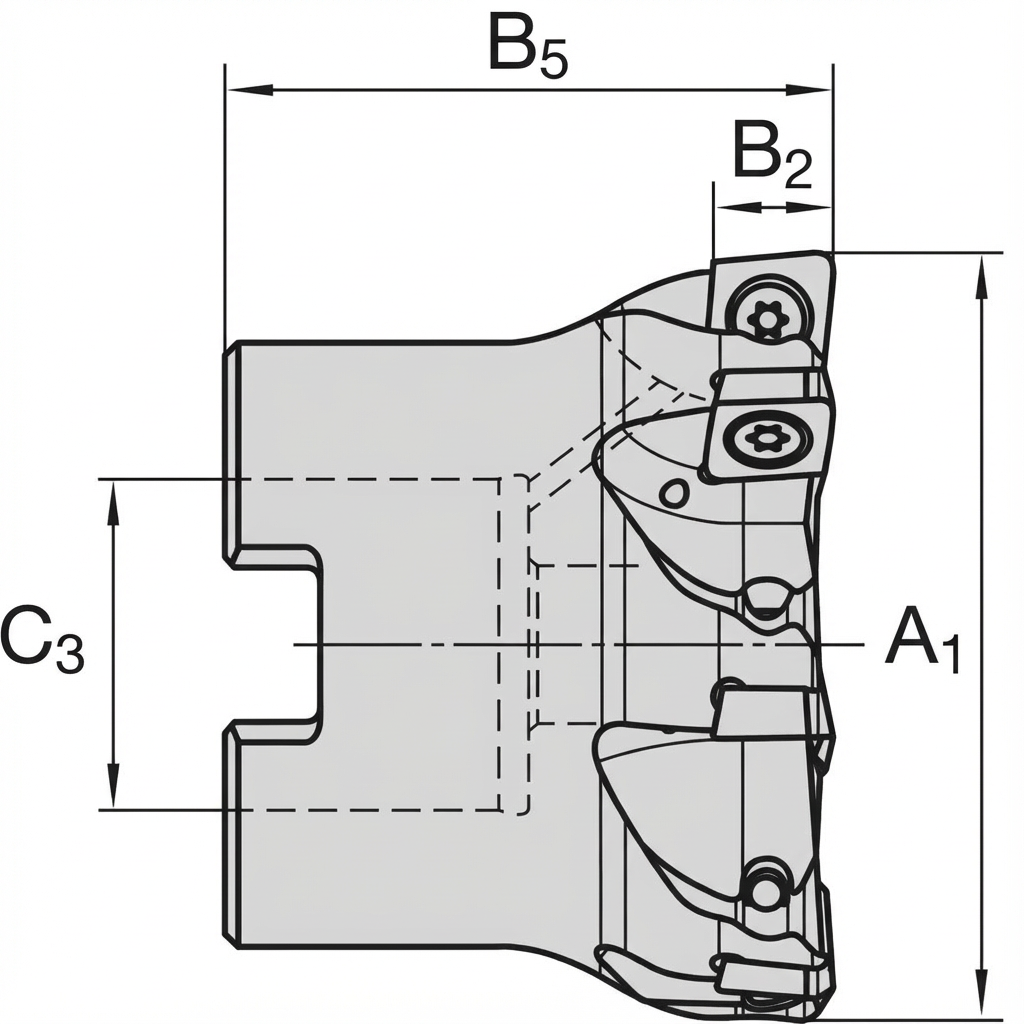

Dimension Table
| EdgeVend Article Number |
Manufacturer Part Number |
Cutting Diameter A1(mm) |
Theoretical / Profile radius G4(mm) | Overall Length B5(mm) |
Connection Size C3(mm) |
Max Depth of Cut B2(mm) |
Cutting Width B11(mm) |
Usable Length B6(mm) |
Body Diameter A3(mm) |
Hub Diameter A4(mm) |
Cutting Diameter 2 A2(mm) |
Number of Teeth z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-MB-0000286 | 7114279 | 42.0 | — | 40.0 | SMC16 | 1.8 | — | 11.0 | 40.0 | 36.0 | — | 6 |
| EV-MB-0000287 | 7114280 | 52.0 | — | 40.0 | SMC22 | 1.8 | — | 12.0 | 50.0 | 40.0 | — | 7 |
| EV-MB-0000288 | 7114281 | 66.0 | — | 50.0 | SMC27 | 1.8 | — | 15.0 | 64.0 | 54.0 | — | 9 |
| EV-MB-0000289 | 7092880 | 80.0 | — | 50.0 | SMC27 | 1.8 | — | 15.0 | 78.0 | 60.0 | — | 11 |
| EV-MB-0000290 | 7092881 | 100.0 | — | 55.0 | SMC32 | 1.8 | — | 20.0 | 98.0 | 78.0 | — | 13 |
| Please choose options to see the values. | ||||||||||||
Compatible inserts
| Insert EdgeVend Article Number |
Insert Manufacturer Part Number |
Insert | Grade | Corner Radius(mm) | ISO Suitability | Price | Quantity | Direct add to Cart |
|
|---|---|---|---|---|---|---|---|---|---|
| Select a Body variant to see compatible inserts. | |||||||||
| ISO | Material | Operation | Stage | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Ramp max(°) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Start here: Select the three options to load recommendations. | |||||||||||||||
Compatible Chucks
Table of Chucks that go along with Mill
