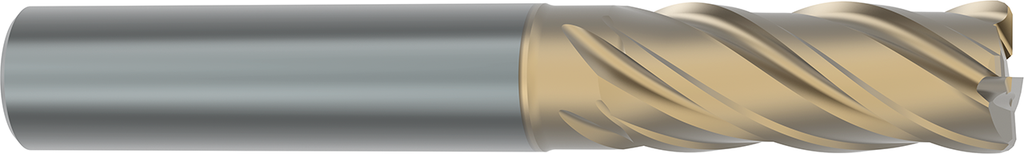

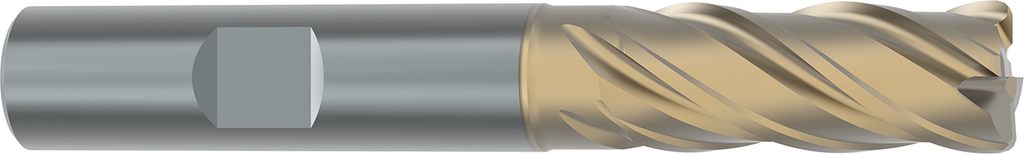

Description
Dimension Table
| EdgeVend Article Number |
Manufacturer Part Number |
Cutting Diameter A1(mm) |
Max Depth of Cut B2(mm) |
Usable Length B4(mm) |
Overall Length B5(mm) |
Shank Diameter C3(mm) |
Number of Teeth z |
Corner Radius G1(mm) |
Corner Chamfer Width G2(mm) |
Corner Chamfer Angle G3(mm) |
Profile Radius G4(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-EM-0000159 | 7429428 | 10.0 | 11.0 | 24.0 | 66.0 | 10 | 4 | 0.5 | — | — | — |
| EV-EM-0000160 | 7429437 | 10.0 | 11.0 | 24.0 | 66.0 | 10 | 4 | 0.5 | — | — | — |
| EV-EM-0000161 | 7429446 | 10.0 | 25.0 | 32.0 | 72.0 | 10 | 4 | 0.5 | — | — | — |
| EV-EM-0000162 | 7429455 | 10.0 | 25.0 | 32.0 | 72.0 | 10 | 4 | 0.5 | — | — | — |
| EV-EM-0000163 | 7429429 | 12.0 | 12.0 | 26.0 | 73.0 | 12 | 4 | 0.5 | — | — | — |
| EV-EM-0000164 | 7429438 | 12.0 | 12.0 | 26.0 | 73.0 | 12 | 4 | 0.5 | — | — | — |
| EV-EM-0000165 | 7429430 | 12.0 | 12.0 | 26.0 | 73.0 | 12 | 4 | 1.0 | — | — | — |
| EV-EM-0000166 | 7429439 | 12.0 | 12.0 | 26.0 | 73.0 | 12 | 4 | 1.0 | — | — | — |
| EV-EM-0000167 | 7429447 | 12.0 | 30.0 | 38.0 | 83.0 | 12 | 4 | 0.5 | — | — | — |
| EV-EM-0000168 | 7429456 | 12.0 | 30.0 | 38.0 | 83.0 | 12 | 4 | 0.5 | — | — | — |
| EV-EM-0000169 | 7429448 | 12.0 | 30.0 | 38.0 | 83.0 | 12 | 4 | 1.0 | — | — | — |
| EV-EM-0000170 | 7429457 | 12.0 | 30.0 | 38.0 | 83.0 | 12 | 4 | 1.0 | — | — | — |
| EV-EM-0000171 | 7429431 | 16.0 | 16.0 | 32.0 | 82.0 | 16 | 4 | 0.5 | — | — | — |
| EV-EM-0000172 | 7429440 | 16.0 | 16.0 | 32.0 | 82.0 | 16 | 4 | 0.5 | — | — | — |
| EV-EM-0000173 | 7429432 | 16.0 | 16.0 | 32.0 | 82.0 | 16 | 4 | 1.0 | — | — | — |
| EV-EM-0000174 | 7429441 | 16.0 | 16.0 | 32.0 | 82.0 | 16 | 4 | 1.0 | — | — | — |
| EV-EM-0000175 | 7429449 | 16.0 | 35.0 | 44.0 | 92.0 | 16 | 4 | 0.5 | — | — | — |
| EV-EM-0000176 | 7429458 | 16.0 | 35.0 | 44.0 | 92.0 | 16 | 4 | 0.5 | — | — | — |
| EV-EM-0000177 | 7429450 | 16.0 | 35.0 | 44.0 | 92.0 | 16 | 4 | 1.0 | — | — | — |
| EV-EM-0000178 | 7429459 | 16.0 | 35.0 | 44.0 | 92.0 | 16 | 4 | 1.0 | — | — | — |
| EV-EM-0000179 | 7429433 | 20.0 | 20.0 | 40.0 | 92.0 | 20 | 4 | 0.5 | — | — | — |
| EV-EM-0000180 | 7429442 | 20.0 | 20.0 | 40.0 | 92.0 | 20 | 4 | 0.5 | — | — | — |
| EV-EM-0000181 | 7429434 | 20.0 | 20.0 | 40.0 | 92.0 | 20 | 4 | 1.0 | — | — | — |
| EV-EM-0000182 | 7429443 | 20.0 | 20.0 | 40.0 | 92.0 | 20 | 4 | 1.0 | — | — | — |
| EV-EM-0000183 | 7429451 | 20.0 | 44.0 | 54.0 | 104.0 | 20 | 4 | 0.5 | — | — | — |
| EV-EM-0000184 | 7429460 | 20.0 | 44.0 | 54.0 | 104.0 | 20 | 4 | 0.5 | — | — | — |
| EV-EM-0000185 | 7429452 | 20.0 | 44.0 | 54.0 | 104.0 | 20 | 4 | 1.0 | — | — | — |
| EV-EM-0000186 | 7429461 | 20.0 | 44.0 | 54.0 | 104.0 | 20 | 4 | 1.0 | — | — | — |
| EV-EM-0000187 | 7429444 | 6.0 | 15.0 | 21.0 | 57.0 | 6 | 4 | 0.5 | — | — | — |
| EV-EM-0000188 | 7429453 | 6.0 | 15.0 | 21.0 | 57.0 | 6 | 4 | 0.5 | — | — | — |
| EV-EM-0000189 | 7429426 | 6.0 | 7.0 | 16.0 | 54.0 | 6 | 4 | 0.5 | — | — | — |
| EV-EM-0000190 | 7429435 | 6.0 | 7.0 | 16.0 | 54.0 | 6 | 4 | 0.5 | — | — | — |
| EV-EM-0000191 | 7429445 | 8.0 | 20.0 | 27.0 | 63.0 | 8 | 4 | 0.5 | — | — | — |
| EV-EM-0000192 | 7429454 | 8.0 | 20.0 | 27.0 | 63.0 | 8 | 4 | 0.5 | — | — | — |
| EV-EM-0000193 | 7429427 | 8.0 | 9.0 | 20.0 | 58.0 | 8 | 4 | 0.5 | — | — | — |
| EV-EM-0000194 | 7429436 | 8.0 | 9.0 | 20.0 | 58.0 | 8 | 4 | 0.5 | — | — | — |
| Please choose options to see the values. | |||||||||||
| ISO | Material | Operation | Stage | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Ramp max(°) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Start here: Please choose a variant. | |||||||||||||||
