LMT-Tools SlotMill Inserts

LMT-Tools

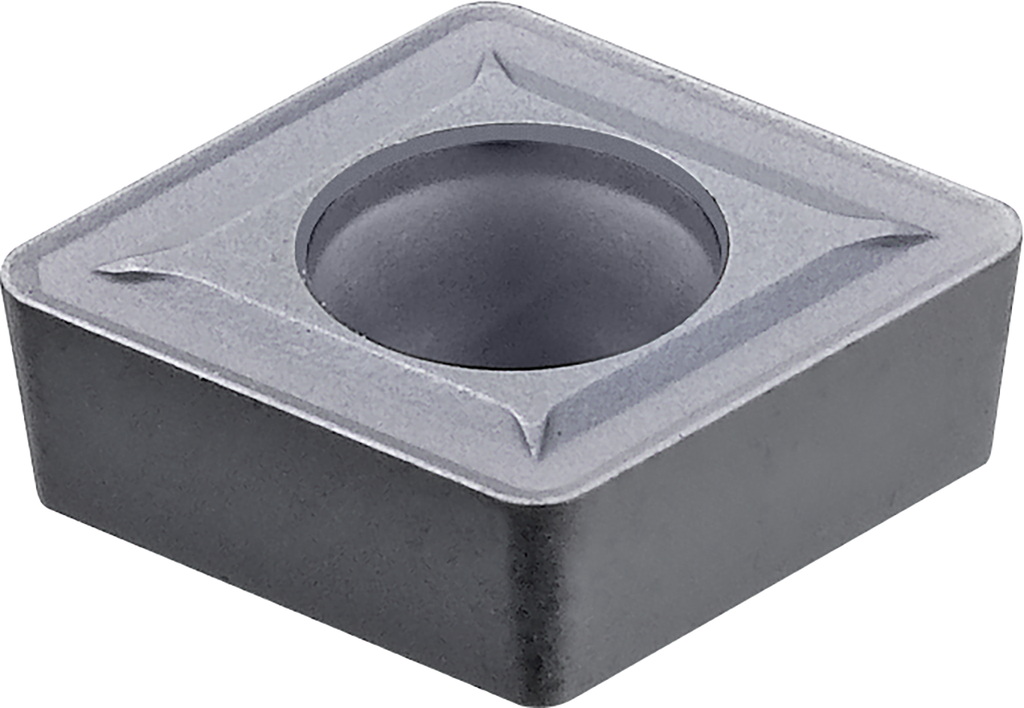

Insert: CCMT 060204

Grade: LCKP10M

Price:

€14,00

Quantity:

Minimum of 10 / increment of 10

Share this product

LMT SlotMill Indexable Inserts

SlotMill inserts are designed for efficient slot milling and side milling wherever reliable chip evacuation, stable cutting performance, and consistent slot quality are required. They are part of the LMT SlotMill system, engineered for productive machining of keyways, grooves and pockets across a wide range of materials (grade-dependent).

Why these inserts

Stable slot milling performance for full-width engagement and demanding cutting conditions
Controlled chip formation for reliable machining in deeper slots and confined chip spaces
Consistent slot quality with geometries aimed at clean slot walls and a stable slot bottom finish
Geometry choice by task to match roughing, semi-finishing or finishing requirements
Economical multi-edge concept for strong cost-per-edge efficiency (insert dependent)

Insert families and sizes

SlotMill inserts are available in multiple sizes and geometries to match cutter diameter and slot width requirements.

Typical compatible SlotMill cutters

Works across the LMT SlotMill cutter range (end mill and/or arbor-type bodies), depending on diameter, body type, and the required slot width.

Please start by choosing a Milling System to find the right Insert.

Go to Milling Systems

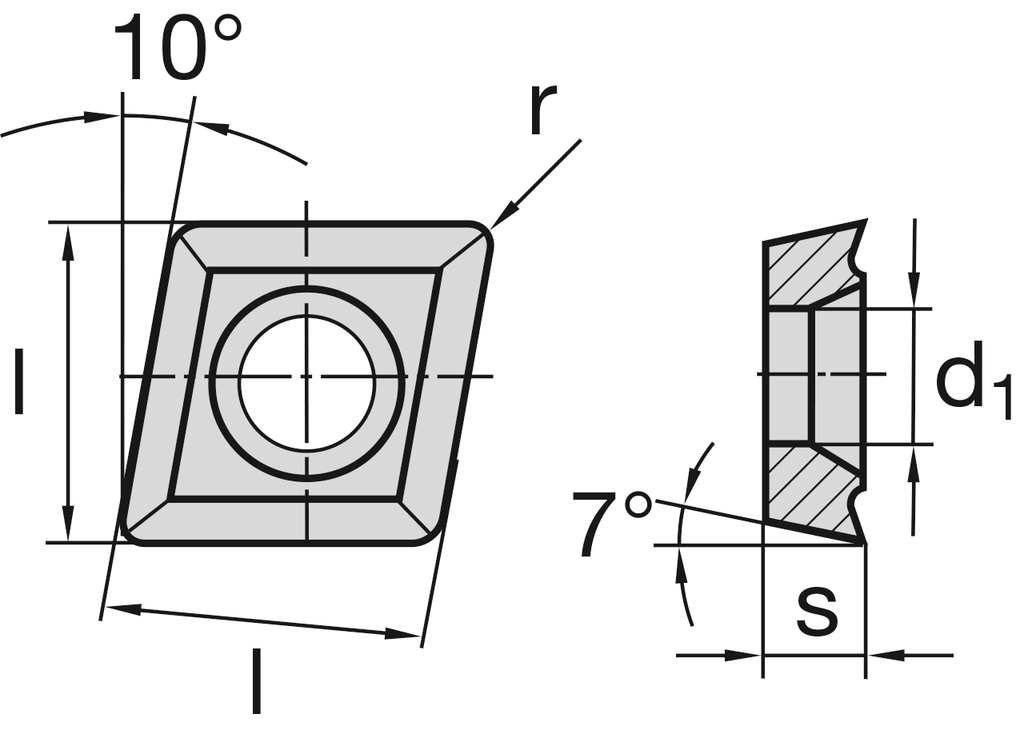

Dimension Table

EdgeVend Article Number	Manufacturer Part Number	Edge Length l(mm)	Width d(mm)	Thickness s(mm)	Fixing Hole d1(mm)	Corner Radius r(mm)	Index count
EV-MI-0000658	1069498	6.45	—	2.38	2.8	0.4	4
EV-MI-0000663	1069499	8.06	—	3.18	3.4	0.8	4
EV-MI-0000662	1069497	6.45	—	2.38	2.8	0.4	4
EV-MI-0000664	1069408	6.45	—	2.38	2.8	0.4	4
EV-MI-0000660	7075813	9.67	—	3.97	4.4	0.8	4
EV-MI-0000659	1069500	8.06	—	3.18	3.4	0.8	4
EV-MI-0000665	1069406	6.45	—	2.38	2.8	0.4	4
Please choose options to see the values.

Insert

Grade

Material

Operation

ISO	Material	Operation	Stage	Coolant	vc min(m/min)	vc typ(m/min)	vc max(m/min)	fz min(mm/tooth)	fz typ(mm/tooth)	fz max(mm/tooth)	ap min(mm)	ap typ(mm)	ap max(mm)	ae% max(%)	Ramp max(°)
