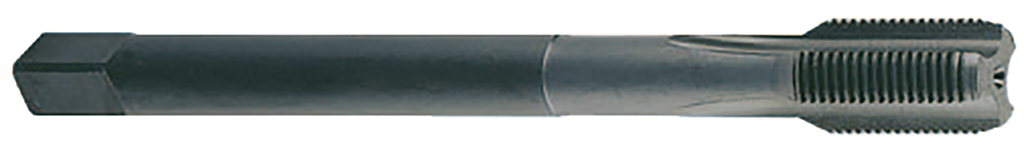

Description
Dimensions Table
| EdgeVend Article Number |
Manufacturer Part Number |
Thread Size A1 |
Thread Tolernance |
Thread Form |
Thread Norm DIN |
Cutting Length B2(mm) |
Usable Length B4(mm) |
Overall Length B5(mm) |
Shank Diameter C3(mm) |
Wrench Size □(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| EV-TA-0000764 | 1387871 | M6x1-6HX | 6HX | C | DIN 376 | 16.0 | — | 80.0 | 4.5 | — |
| EV-TA-0000766 | 1387875 | M8x1,25-6HX | 6HX | C | DIN 376 | 18.0 | — | 90.0 | 6.0 | — |
| EV-TA-0000769 | 1387888 | M14x2-6HX | 6HX | C | DIN 376 | 26.0 | — | 110.0 | 11.0 | — |
| EV-TA-0000770 | 1387897 | M16x2-6HX | 6HX | C | DIN 376 | 28.0 | — | 110.0 | 12.0 | — |
| EV-TA-0000773 | 1387914 | M22x2,5-6HX | 6HX | C | DIN 376 | 32.0 | — | 140.0 | 18.0 | — |
| EV-TA-0000774 | 1387915 | M24x3-6HX | 6HX | C | DIN 376 | 36.0 | — | 160.0 | 18.0 | — |
| EV-TA-0000775 | 1387916 | M27x3-6HX | 6HX | C | DIN 376 | 36.0 | — | 160.0 | 20.0 | — |
| EV-TA-0000776 | 1387917 | M30x3,5-6HX | 6HX | C | DIN 376 | 40.0 | — | 180.0 | 22.0 | — |
| Please choose options to see the values. | ||||||||||
Get your right Pre-Drill
| Drill EdgeVend Article Number |
Drill Manufacturer Part Number |
Drill Diameter Ø(mm) |
Drill L×D |
Depth of Cut(mm) |
ISO Suitability | Price | Quantity | Direct add to Cart |
|
|---|---|---|---|---|---|---|---|---|---|
| Select a variant to see compatible pre-drills. | |||||||||
Cutting Data
| ISO | Material | Operation | Ø Pre-Drill(mm) | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) |
|---|---|---|---|---|---|---|---|
| Start here: Please choose a variant. | |||||||
