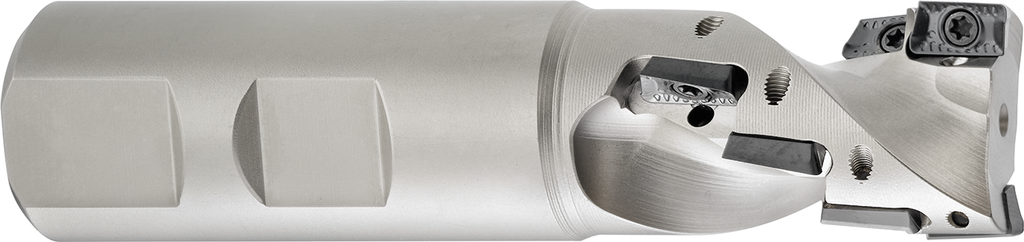

Description
Dimension Table
| EdgeVend Article Number |
Manufacturer Part Number |

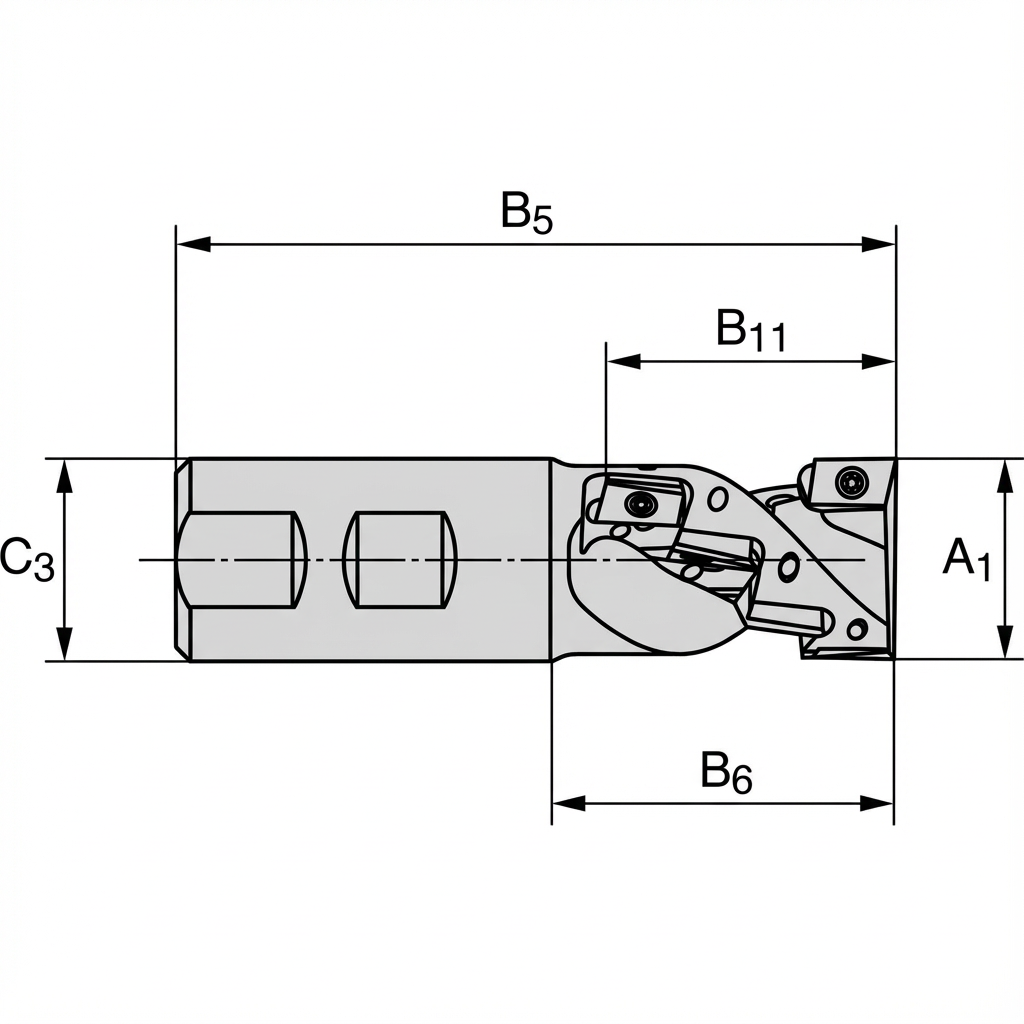

Cutting Diameter A1(mm) |
Theoretical / Profile radius G4(mm) | Overall Length B5(mm) |
Connection Size C3(mm) |
Max Depth of Cut B2(mm) |
Cutting Width B11(mm) |
Usable Length B6(mm) |
Body Diameter A3(mm) |
Hub Diameter A4(mm) |
Cutting Diameter 2 A2(mm) |
Number of Teeth z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-MB-0000054 | 7097646 | 20.0 | — | 86.0 | 20 | 25.0 | — | — | 18.6 | — | — | 6 |
| EV-MB-0000055 | 7097647 | 25.0 | — | 100.0 | 25 | 33.0 | — | — | 23.4 | — | — | 8 |
| EV-MB-0000056 | 7097649 | 32.0 | — | 115.0 | 32 | 41.0 | — | — | 30.4 | — | — | 15 |
| EV-MB-0000057 | 7097651 | 32.0 | — | 115.0 | 32 | 45.0 | — | — | 29.6 | — | — | 8 |
| EV-MB-0000058 | 7097653 | 40.0 | — | 140.0 | 40 | 55.0 | — | — | 37.6 | — | — | 15 |
| Please choose options to see the values. | ||||||||||||
Compatible inserts
| Insert EdgeVend Article Number |
Insert Manufacturer Part Number |
Insert | Grade | Corner Radius(mm) | ISO Suitability | Price | Quantity | Direct add to Cart |
|
|---|---|---|---|---|---|---|---|---|---|
| Select a Body variant to see compatible inserts. | |||||||||
| ISO | Material | Operation | Stage | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Ramp max(°) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Start here: Select the three options to load recommendations. | |||||||||||||||
Compatible Chucks
Table of Chucks that go along with Mill
