Worldia PcBN - CNGA

Worldia

ISO Code: CNGA120402-2N

Grade: MHN10C

Price:

€31,89

Quantity:

Minimum of 2 / increment of 2

Share this product

WORLDIA MANANOVA PCBN Turning Inserts

MANANOVA PCBN inserts are superhard turning inserts designed for hardened steels (ISO H), cast irons and ductile irons (ISO K), and powder metals (ISO S). The program supports stable machining from continuous to interrupted cutting by offering grade families with different toughness/wear balances and coating concepts—making it easier to select a reliable insert for your exact interruption level and material group.

Why these inserts

Fast delivery, easy ordering for common hardened/cast/powder-metal turning tasks
Material-focused grade families for ISO H / ISO K / ISO S with defined first-choice guidance
Interruption-based selection covering continuous, light, medium, and heavy interrupted cutting
Broad standard shape coverage across common ISO insert styles for finishing to general turning

Typical PCBN grade families (selection by material & interruption)

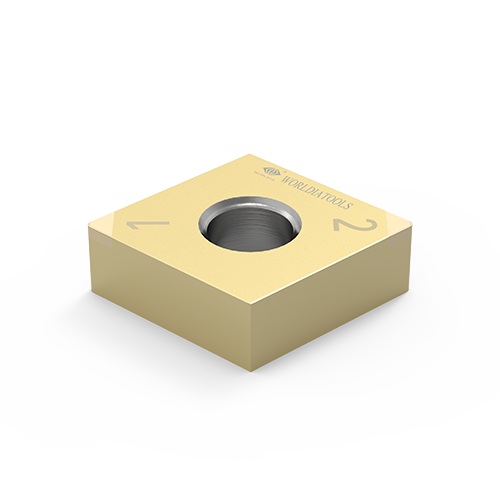

MHN series: first-choice for ISO H (hardened steels), with variants aligned to continuous through heavier interruption

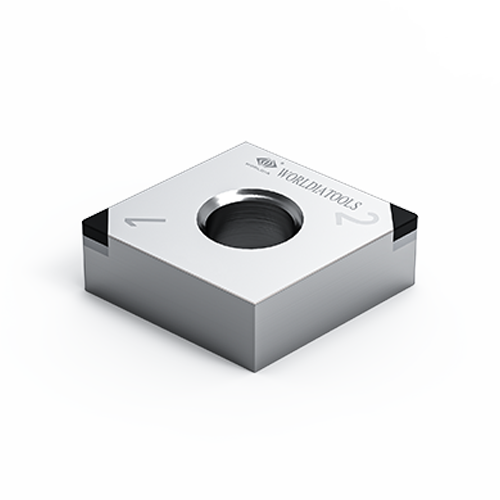

MKN series: first-choice for ISO K (cast iron / ductile iron), supporting stable wear behaviour at practical cutting speeds
MSN series: first-choice for ISO S (powder metals), supporting reliable machining in demanding PM applications

Typical insert families

MANANOVA PCBN includes common ISO turning shapes and sizes (e.g., C-, D-, V-, T- and negative styles such as CN/DN/TN/WN) for hard turning and cast-iron turning, with grade availability mapped to material group and interruption level.

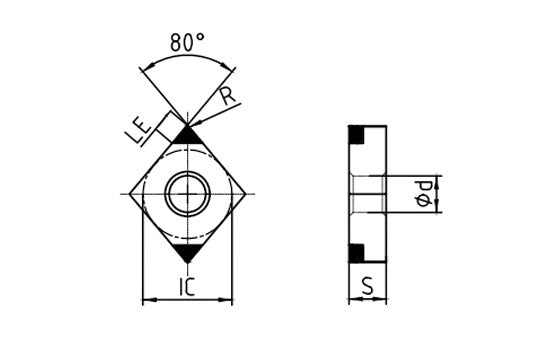

Turning insert dimensions

EdgeVend Article Number	Manufacturer Part Number	Inscribed Circle IC(mm)	Thickness S(mm)	Corner Radius R(mm)	Clamp Hole Ød(mm)	Index count
EV-TI-0000135	MN00780	12.7	4.76	0.2	5.16	2
EV-TI-0000136	MN00781	12.7	4.76	0.2	5.16	2
EV-TI-0000137	MN00525	12.7	4.76	0.4	5.16	2
EV-TI-0000138	MN00497	12.7	4.76	0.4	5.16	2
EV-TI-0000139	MN00567	12.7	4.76	0.4	5.16	2
EV-TI-0000140	MN00128	12.7	4.76	0.4	5.16	2
EV-TI-0000141	MN00129	12.7	4.76	0.4	5.16	2
EV-TI-0000142	MN00130	12.7	4.76	0.4	5.16	2
EV-TI-0000143	MN00736	12.7	4.76	0.4	5.16	2
EV-TI-0000144	MN00509	12.7	4.76	0.8	5.16	2
EV-TI-0000145	MN00498	12.7	4.76	0.8	5.16	2
EV-TI-0000146	MN00510	12.7	4.76	0.8	5.16	2
EV-TI-0000147	MN00134	12.7	4.76	0.8	5.16	2
EV-TI-0000148	MN00135	12.7	4.76	0.8	5.16	2
EV-TI-0000149	MN00136	12.7	4.76	0.8	5.16	2
EV-TI-0000150	MN00737	12.7	4.76	0.8	5.16	2
EV-TI-0000151	MN00522	12.7	4.76	0.8	5.16	4
EV-TI-0000152	MN00568	12.7	4.76	0.8	5.16	4
EV-TI-0000153	MN00569	12.7	4.76	0.8	5.16	4
EV-TI-0000154	MN00140	12.7	4.76	0.8	5.16	4
EV-TI-0000155	MN00141	12.7	4.76	0.8	5.16	4
EV-TI-0000156	MN00142	12.7	4.76	0.8	5.16	4
EV-TI-0000157	MN00669	12.7	4.76	1.2	5.16	2
EV-TI-0000158	MN00807	12.7	4.76	1.2	5.16	2
EV-TI-0000159	MN00654	12.7	4.76	1.2	5.16	2
EV-TI-0000160	MN00777	12.7	4.76	1.2	5.16	2
EV-TI-0000161	MN00823	12.7	4.76	1.6	5.16	2
EV-TI-0000162	MN00824	12.7	4.76	1.6	5.16	2
EV-TI-0000163	MN00825	12.7	4.76	1.6	5.16	4
EV-TI-0000164	MN00826	12.7	4.76	1.6	5.16	4
Please choose options to see the values.

Turning cutting data

Material

Operation

Interruption

Stage

ISO	Material	Operation	Interruption	Stage	Coolant	vc min(m/min)	vc typ(m/min)	vc max(m/min)	fn min(mm/rev)	fn typ(mm/rev)	fn max(mm/rev)	ap min(mm)	ap typ(mm)	ap max(mm)
