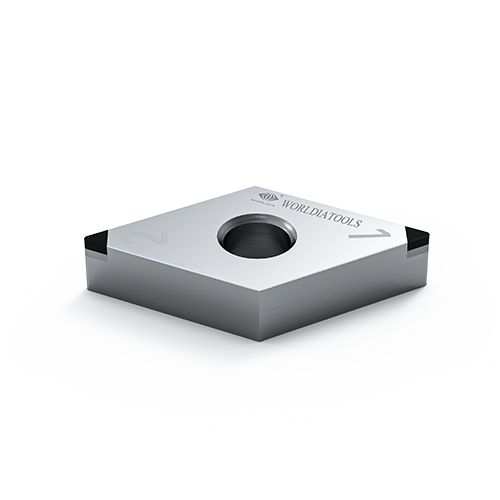

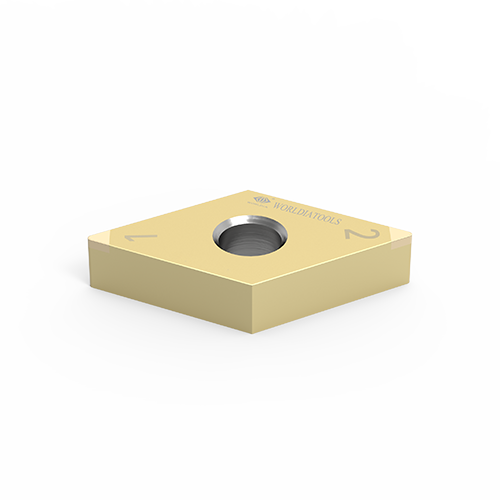

Worldia PcBN - DNGA

Worldia

ISO Code: DNGA150404-2N

Grade: MHN10C

Price:

€31,89

Quantity:

Minimum of 2 / increment of 2

Share this product

WORLDIA MANANOVA PCBN Turning Inserts

MANANOVA PCBN inserts are superhard turning inserts designed for hardened steels (ISO H), cast irons and ductile irons (ISO K), and powder metals (ISO S). The program supports stable machining from continuous to interrupted cutting by offering grade families with different toughness/wear balances and coating concepts—making it easier to select a reliable insert for your exact interruption level and material group.

Why these inserts

Fast delivery, easy ordering for common hardened/cast/powder-metal turning tasks
Material-focused grade families for ISO H / ISO K / ISO S with defined first-choice guidance
Interruption-based selection covering continuous, light, medium, and heavy interrupted cutting
Broad standard shape coverage across common ISO insert styles for finishing to general turning

Typical PCBN grade families (selection by material & interruption)

MHN series: first-choice for ISO H (hardened steels), with variants aligned to continuous through heavier interruption
MKN series: first-choice for ISO K (cast iron / ductile iron), supporting stable wear behaviour at practical cutting speeds
MSN series: first-choice for ISO S (powder metals), supporting reliable machining in demanding PM applications

Typical insert families

MANANOVA PCBN includes common ISO turning shapes and sizes (e.g., C-, D-, V-, T- and negative styles such as CN/DN/TN/WN) for hard turning and cast-iron turning, with grade availability mapped to material group and interruption level.

Turning insert dimensions

EdgeVend Article Number	Manufacturer Part Number	Inscribed Circle IC(mm)	Thickness S(mm)	Corner Radius R(mm)	Clamp Hole Ød(mm)	Index count
EV-TI-0000207	MN00578	12.7	4.76	0.4	5.16	2
EV-TI-0000208	MN00541	12.7	4.76	0.4	5.16	2
EV-TI-0000209	MN00579	12.7	4.76	0.4	5.16	2
EV-TI-0000210	MN00176	12.7	4.76	0.4	5.16	2
EV-TI-0000211	MN00177	12.7	4.76	0.4	5.16	2
EV-TI-0000212	MN00178	12.7	4.76	0.4	5.16	2
EV-TI-0000213	MN00743	12.7	4.76	0.4	5.16	2
EV-TI-0000214	MN00580	12.7	4.76	0.8	5.16	2
EV-TI-0000215	MN00546	12.7	4.76	0.8	5.16	2
EV-TI-0000216	MN00528	12.7	4.76	0.8	5.16	2
EV-TI-0000217	MN00849	12.7	4.76	0.8	5.16	4
EV-TI-0000218	MN00829	12.7	4.76	0.8	5.16	4
EV-TI-0000219	MN00183	12.7	4.76	0.8	5.16	2
EV-TI-0000220	MN00184	12.7	4.76	0.8	5.16	2
EV-TI-0000221	MN00185	12.7	4.76	0.8	5.16	2
EV-TI-0000222	MN00744	12.7	4.76	0.8	5.16	2
EV-TI-0000223	MN00581	12.7	4.76	1.2	5.16	2
EV-TI-0000224	MN00582	12.7	4.76	1.2	5.16	2
EV-TI-0000225	MN00583	12.7	4.76	1.2	5.16	2
EV-TI-0000226	MN00189	12.7	4.76	1.2	5.16	2
EV-TI-0000227	MN00190	12.7	4.76	1.2	5.16	2
EV-TI-0000228	MN00191	12.7	4.76	1.2	5.16	2
EV-TI-0000229	MN00745	12.7	4.76	1.2	5.16	2
EV-TI-0000230	MN00584	12.7	6.35	0.4	5.16	2
EV-TI-0000231	MN00585	12.7	6.35	0.4	5.16	2
EV-TI-0000232	MN00586	12.7	6.35	0.4	5.16	2
EV-TI-0000233	MN00195	12.7	6.35	0.4	5.16	2
EV-TI-0000234	MN00196	12.7	6.35	0.4	5.16	2
EV-TI-0000235	MN00197	12.7	6.35	0.4	5.16	2
EV-TI-0000236	MN00746	12.7	6.35	0.4	5.16	2
EV-TI-0000237	MN00814	12.7	6.35	0.4	5.16	4
EV-TI-0000238	MN00524	12.7	6.35	0.8	5.16	2
EV-TI-0000239	MN00514	12.7	6.35	0.8	5.16	2
EV-TI-0000240	MN00513	12.7	6.35	0.8	5.16	2
EV-TI-0000241	MN00201	12.7	6.35	0.8	5.16	2
EV-TI-0000242	MN00202	12.7	6.35	0.8	5.16	2
EV-TI-0000243	MN00203	12.7	6.35	0.8	5.16	2
EV-TI-0000244	MN00747	12.7	6.35	0.8	5.16	2
EV-TI-0000245	MN00676	12.7	6.35	0.8	5.16	4
EV-TI-0000246	MN00677	12.7	6.35	0.8	5.16	4
EV-TI-0000247	MN00704	12.7	6.35	1.2	5.16	4
EV-TI-0000248	MN00830	12.7	6.35	1.2	5.16	2
EV-TI-0000249	MN00668	12.7	6.35	1.2	5.16	2
Please choose options to see the values.

Turning cutting data

Material

Operation

Interruption

Stage

ISO	Material	Operation	Interruption	Stage	Coolant	vc min(m/min)	vc typ(m/min)	vc max(m/min)	fn min(mm/rev)	fn typ(mm/rev)	fn max(mm/rev)	ap min(mm)	ap typ(mm)	ap max(mm)
