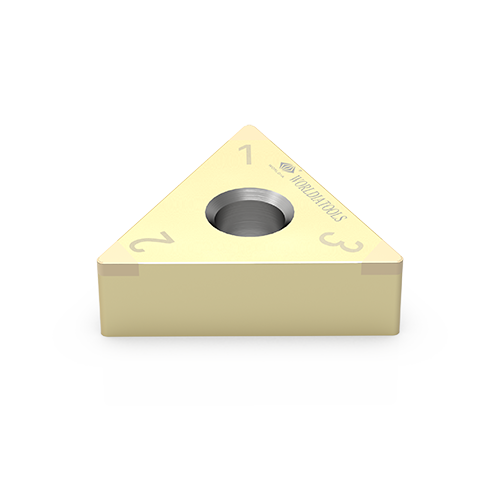

Worldia PcBN - TNGA

Worldia

ISO Code: TNGA160402-3N

Grade: MHN10C

Price:

€48,03

Quantity:

Minimum of 2 / increment of 2

Share this product

WORLDIA MANANOVA PCBN Turning Inserts

MANANOVA PCBN inserts are superhard turning inserts designed for hardened steels (ISO H), cast irons and ductile irons (ISO K), and powder metals (ISO S). The program supports stable machining from continuous to interrupted cutting by offering grade families with different toughness/wear balances and coating concepts—making it easier to select a reliable insert for your exact interruption level and material group.

Why these inserts

Fast delivery, easy ordering for common hardened/cast/powder-metal turning tasks
Material-focused grade families for ISO H / ISO K / ISO S with defined first-choice guidance
Interruption-based selection covering continuous, light, medium, and heavy interrupted cutting
Broad standard shape coverage across common ISO insert styles for finishing to general turning

Typical PCBN grade families (selection by material & interruption)

MHN series: first-choice for ISO H (hardened steels), with variants aligned to continuous through heavier interruption

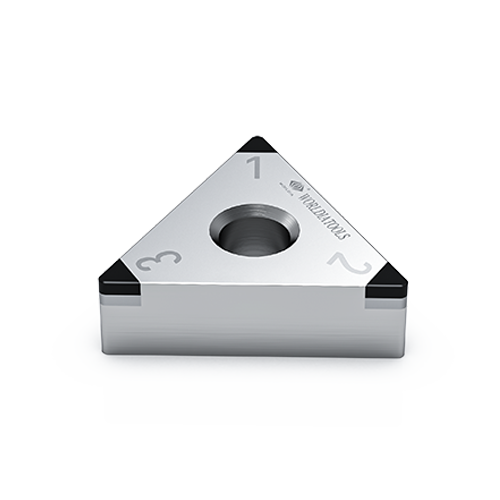

MKN series: first-choice for ISO K (cast iron / ductile iron), supporting stable wear behaviour at practical cutting speeds
MSN series: first-choice for ISO S (powder metals), supporting reliable machining in demanding PM applications

Typical insert families

MANANOVA PCBN includes common ISO turning shapes and sizes (e.g., C-, D-, V-, T- and negative styles such as CN/DN/TN/WN) for hard turning and cast-iron turning, with grade availability mapped to material group and interruption level.

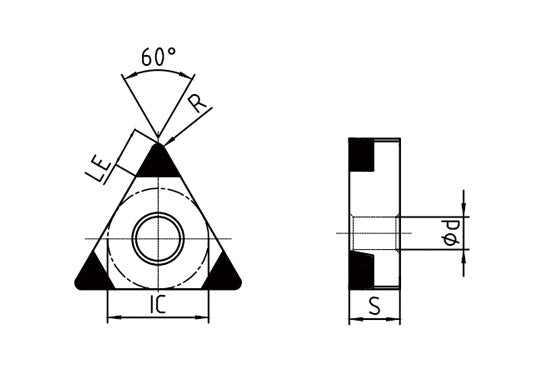

Turning insert dimensions

EdgeVend Article Number	Manufacturer Part Number	Inscribed Circle IC(mm)	Thickness S(mm)	Corner Radius R(mm)	Clamp Hole Ød(mm)	Index count
EV-TI-0000295	MN00842	9.525	4.76	0.2	3.81	3
EV-TI-0000296	MN00843	9.525	4.76	0.2	3.81	3
EV-TI-0000297	MN00503	9.525	4.76	0.4	3.81	3
EV-TI-0000298	MN00504	9.525	4.76	0.4	3.81	3
EV-TI-0000299	MN00505	9.525	4.76	0.4	3.81	3
EV-TI-0000300	MN00506	9.525	4.76	0.4	3.81	3
EV-TI-0000301	MN00507	9.525	4.76	0.4	3.81	3
EV-TI-0000302	MN00841	9.525	4.76	0.4	3.81	3
EV-TI-0000303	MN00602	9.525	4.76	0.8	3.81	3
EV-TI-0000304	MN00495	9.525	4.76	0.8	3.81	3
EV-TI-0000305	MN00519	9.525	4.76	0.8	3.81	3
EV-TI-0000306	MN00243	9.525	4.76	0.8	3.81	3
EV-TI-0000307	MN00244	9.525	4.76	0.8	3.81	3
EV-TI-0000308	MN00245	9.525	4.76	0.8	3.81	3
EV-TI-0000309	MN00754	9.525	4.76	0.8	3.81	3
EV-TI-0000310	MN00603	9.525	4.76	1.2	3.81	3
EV-TI-0000311	MN00604	9.525	4.76	1.2	3.81	3
EV-TI-0000312	MN00605	9.525	4.76	1.2	3.81	3
EV-TI-0000313	MN00249	9.525	4.76	1.2	3.81	3
EV-TI-0000314	MN00250	9.525	4.76	1.2	3.81	3
EV-TI-0000315	MN00251	9.525	4.76	1.2	3.81	3
EV-TI-0000316	MN00755	9.525	4.76	1.2	3.81	3
EV-TI-0000317	MN00831	9.525	4.76	1.6	3.81	3
EV-TI-0000318	MN00832	9.525	4.76	1.6	3.81	3
Please choose options to see the values.

Turning cutting data

Material

Operation

Interruption

Stage

ISO	Material	Operation	Interruption	Stage	Coolant	vc min(m/min)	vc typ(m/min)	vc max(m/min)	fn min(mm/rev)	fn typ(mm/rev)	fn max(mm/rev)	ap min(mm)	ap typ(mm)	ap max(mm)
