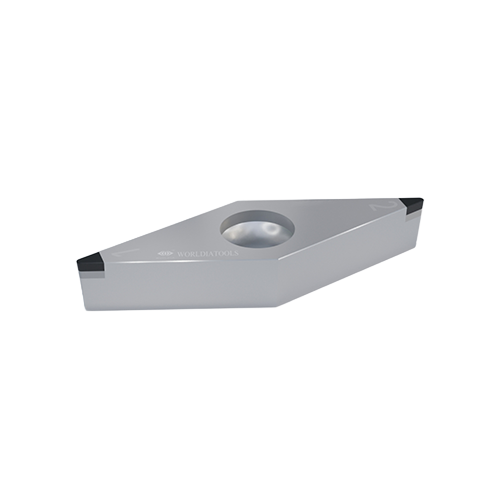

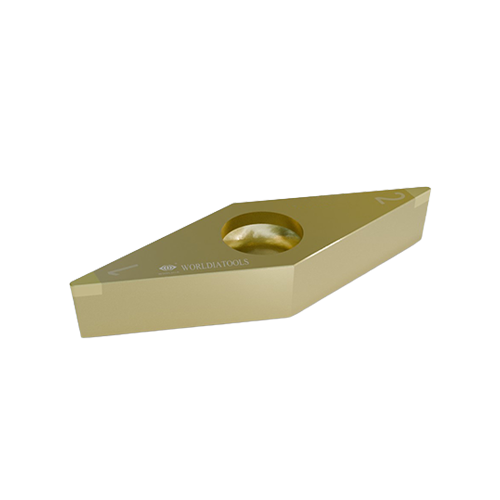

Worldia PcBN - VBGW

Worldia

ISO Code: VBGW110302-2N

Grade: MHN10C

Price:

€31,89

Quantity:

Minimum of 2 / increment of 2

Share this product

WORLDIA MANANOVA PCBN Turning Inserts

MANANOVA PCBN inserts are superhard turning inserts designed for hardened steels (ISO H), cast irons and ductile irons (ISO K), and powder metals (ISO S). The program supports stable machining from continuous to interrupted cutting by offering grade families with different toughness/wear balances and coating concepts—making it easier to select a reliable insert for your exact interruption level and material group.

Why these inserts

Fast delivery, easy ordering for common hardened/cast/powder-metal turning tasks
Material-focused grade families for ISO H / ISO K / ISO S with defined first-choice guidance
Interruption-based selection covering continuous, light, medium, and heavy interrupted cutting
Broad standard shape coverage across common ISO insert styles for finishing to general turning

Typical PCBN grade families (selection by material & interruption)

MHN series: first-choice for ISO H (hardened steels), with variants aligned to continuous through heavier interruption
MKN series: first-choice for ISO K (cast iron / ductile iron), supporting stable wear behaviour at practical cutting speeds
MSN series: first-choice for ISO S (powder metals), supporting reliable machining in demanding PM applications

Typical insert families

MANANOVA PCBN includes common ISO turning shapes and sizes (e.g., C-, D-, V-, T- and negative styles such as CN/DN/TN/WN) for hard turning and cast-iron turning, with grade availability mapped to material group and interruption level.

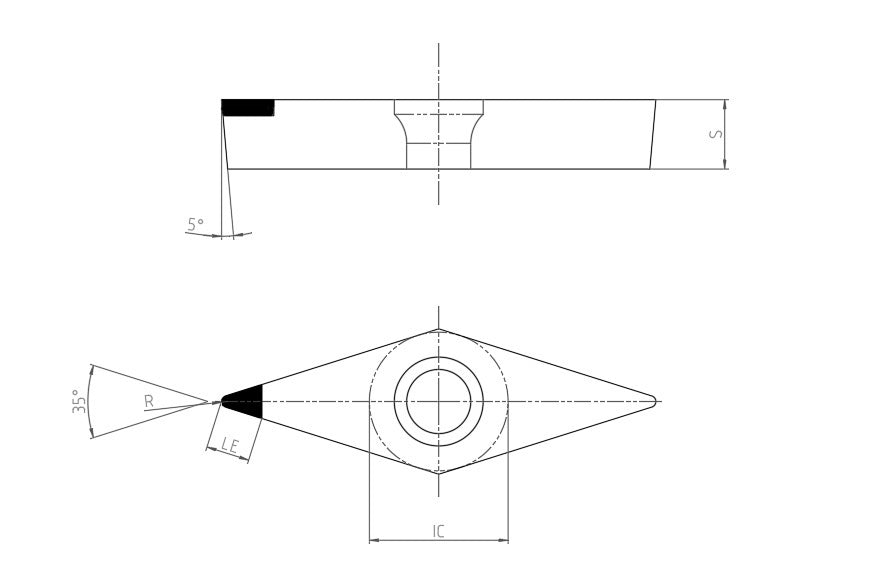

Turning insert dimensions

EdgeVend Article Number	Manufacturer Part Number	Inscribed Circle IC(mm)	Thickness S(mm)	Corner Radius R(mm)	Clamp Hole Ød(mm)	Index count
EV-TI-0000377	MN00775	6.35	3.18	0.2	2.8	2
EV-TI-0000378	MN00776	6.35	3.18	0.2	2.8	2
EV-TI-0000379	MN00782	6.35	3.18	0.4	2.8	2
EV-TI-0000380	MN00783	6.35	3.18	0.4	2.8	2
EV-TI-0000381	MN00695	9.525	4.76	0.2	4.4	2
EV-TI-0000382	MN00687	9.525	4.76	0.2	4.4	2
EV-TI-0000383	MN00680	9.525	4.76	0.2	4.4	2
EV-TI-0000384	MN00681	9.525	4.76	0.2	4.4	2
EV-TI-0000385	MN00693	9.525	4.76	0.2	4.4	2
EV-TI-0000386	MN00694	9.525	4.76	0.2	4.4	2
EV-TI-0000387	MN00797	9.525	4.76	0.2	4.4	2
EV-TI-0000388	MN00690	9.525	4.76	0.4	4.4	2
EV-TI-0000389	MN00686	9.525	4.76	0.4	4.4	2
EV-TI-0000390	MN00679	9.525	4.76	0.4	4.4	2
EV-TI-0000391	MN00678	9.525	4.76	0.4	4.4	2
EV-TI-0000392	MN00692	9.525	4.76	0.4	4.4	2
EV-TI-0000393	MN00691	9.525	4.76	0.4	4.4	2
EV-TI-0000394	MN00798	9.525	4.76	0.4	4.4	2
EV-TI-0000395	MN00696	9.525	4.76	0.8	4.4	2
EV-TI-0000396	MN00688	9.525	4.76	0.8	4.4	2
EV-TI-0000397	MN00683	9.525	4.76	0.8	4.4	2
EV-TI-0000398	MN00682	9.525	4.76	0.8	4.4	2
EV-TI-0000399	MN00698	9.525	4.76	0.8	4.4	2
EV-TI-0000400	MN00697	9.525	4.76	0.8	4.4	2
EV-TI-0000401	MN00799	9.525	4.76	0.8	4.4	2
EV-TI-0000402	MN00701	9.525	4.76	1.2	4.4	2
EV-TI-0000403	MN00689	9.525	4.76	1.2	4.4	2
EV-TI-0000404	MN00684	9.525	4.76	1.2	4.4	2
EV-TI-0000405	MN00685	9.525	4.76	1.2	4.4	2
EV-TI-0000406	MN00699	9.525	4.76	1.2	4.4	2
EV-TI-0000407	MN00700	9.525	4.76	1.2	4.4	2
Please choose options to see the values.

Turning cutting data

Material

Operation

Interruption

Stage

ISO	Material	Operation	Interruption	Stage	Coolant	vc min(m/min)	vc typ(m/min)	vc max(m/min)	fn min(mm/rev)	fn typ(mm/rev)	fn max(mm/rev)	ap min(mm)	ap typ(mm)	ap max(mm)
