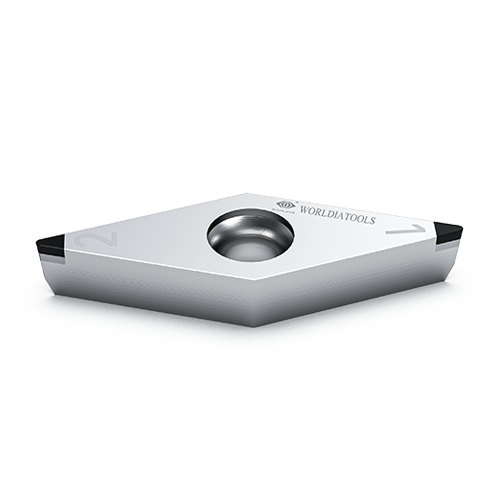

Worldia PcBN - VCGW

Worldia

ISO Code: VCGW080202-2N

Grade: MHN10C

Price:

€31,89

Quantity:

Minimum of 2 / increment of 2

Share this product

WORLDIA MANANOVA PCBN Turning Inserts

MANANOVA PCBN inserts are superhard turning inserts designed for hardened steels (ISO H), cast irons and ductile irons (ISO K), and powder metals (ISO S). The program supports stable machining from continuous to interrupted cutting by offering grade families with different toughness/wear balances and coating concepts—making it easier to select a reliable insert for your exact interruption level and material group.

Why these inserts

Fast delivery, easy ordering for common hardened/cast/powder-metal turning tasks
Material-focused grade families for ISO H / ISO K / ISO S with defined first-choice guidance
Interruption-based selection covering continuous, light, medium, and heavy interrupted cutting
Broad standard shape coverage across common ISO insert styles for finishing to general turning

Typical PCBN grade families (selection by material & interruption)

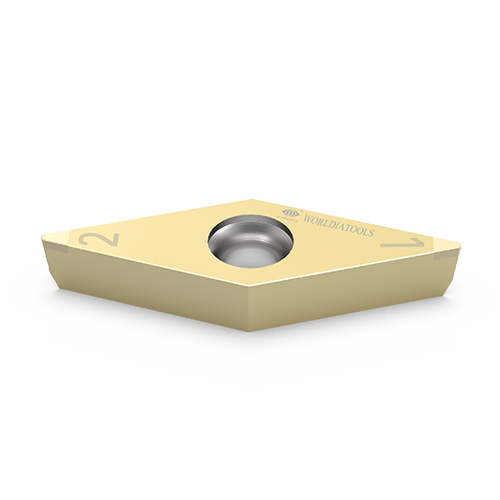

MHN series: first-choice for ISO H (hardened steels), with variants aligned to continuous through heavier interruption
MKN series: first-choice for ISO K (cast iron / ductile iron), supporting stable wear behaviour at practical cutting speeds
MSN series: first-choice for ISO S (powder metals), supporting reliable machining in demanding PM applications

Typical insert families

MANANOVA PCBN includes common ISO turning shapes and sizes (e.g., C-, D-, V-, T- and negative styles such as CN/DN/TN/WN) for hard turning and cast-iron turning, with grade availability mapped to material group and interruption level.

Turning insert dimensions

EdgeVend Article Number	Manufacturer Part Number	Inscribed Circle IC(mm)	Thickness S(mm)	Corner Radius R(mm)	Clamp Hole Ød(mm)	Index count
EV-TI-0000408	MN00790	4.76	2.38	0.2	2.3	2
EV-TI-0000409	MN00789	4.76	2.38	0.2	2.3	2
EV-TI-0000410	MN00791	4.76	2.38	0.4	2.3	2
EV-TI-0000411	MN00792	4.76	2.38	0.4	2.3	2
EV-TI-0000412	MN00670	6.35	3.18	0.2	2.8	2
EV-TI-0000413	MN00835	6.35	3.18	0.2	2.8	2
EV-TI-0000414	MN00626	6.35	3.18	0.4	2.8	2
EV-TI-0000415	MN00627	6.35	3.18	0.4	2.8	2
EV-TI-0000416	MN00628	6.35	3.18	0.4	2.8	2
EV-TI-0000417	MN00303	6.35	3.18	0.4	2.8	2
EV-TI-0000418	MN00304	6.35	3.18	0.4	2.8	2
EV-TI-0000419	MN00305	6.35	3.18	0.4	2.8	2
EV-TI-0000420	MN00764	6.35	3.18	0.4	2.8	2
EV-TI-0000421	MN00629	6.35	3.18	0.8	2.8	2
EV-TI-0000422	MN00630	6.35	3.18	0.8	2.8	2
EV-TI-0000423	MN00631	6.35	3.18	0.8	2.8	2
EV-TI-0000424	MN00309	6.35	3.18	0.8	2.8	2
EV-TI-0000425	MN00310	6.35	3.18	0.8	2.8	2
EV-TI-0000426	MN00311	6.35	3.18	0.8	2.8	2
EV-TI-0000427	MN00765	6.35	3.18	0.8	2.8	2
EV-TI-0000428	MN00778	9.525	4.76	0.2	4.4	2
EV-TI-0000429	MN00779	9.525	4.76	0.2	4.4	2
EV-TI-0000430	MN00635	9.525	4.76	0.4	4.4	2
EV-TI-0000431	MN00636	9.525	4.76	0.4	4.4	2
EV-TI-0000432	MN00637	9.525	4.76	0.4	4.4	2
EV-TI-0000433	MN00321	9.525	4.76	0.4	4.4	2
EV-TI-0000434	MN00322	9.525	4.76	0.4	4.4	2
EV-TI-0000435	MN00323	9.525	4.76	0.4	4.4	2
EV-TI-0000436	MN00766	9.525	4.76	0.4	4.4	2
EV-TI-0000437	MN00638	9.525	4.76	0.8	4.4	2
EV-TI-0000438	MN00639	9.525	4.76	0.8	4.4	2
EV-TI-0000439	MN00640	9.525	4.76	0.8	4.4	2
EV-TI-0000440	MN00327	9.525	4.76	0.8	4.4	2
EV-TI-0000441	MN00328	9.525	4.76	0.8	4.4	2
EV-TI-0000442	MN00329	9.525	4.76	0.8	4.4	2
EV-TI-0000443	MN00767	9.525	4.76	0.8	4.4	2
Please choose options to see the values.

Turning cutting data

Material

Operation

Interruption

Stage

ISO	Material	Operation	Interruption	Stage	Coolant	vc min(m/min)	vc typ(m/min)	vc max(m/min)	fn min(mm/rev)	fn typ(mm/rev)	fn max(mm/rev)	ap min(mm)	ap typ(mm)	ap max(mm)
