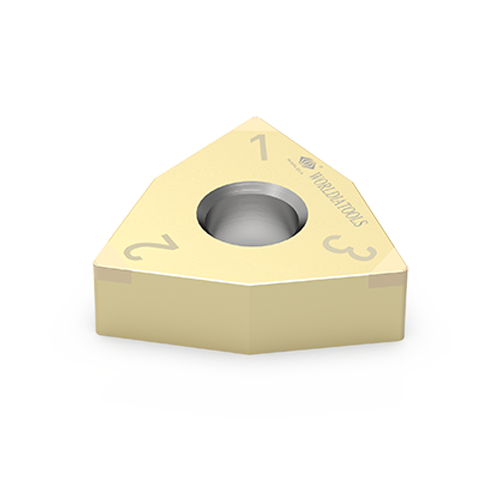

Worldia PcBN - WNGA

Worldia

ISO Code: WNGA060404-3N

Grade: MHN10C

Price:

€48,03

Quantity:

Minimum of 2 / increment of 2

Share this product

WORLDIA MANANOVA PCBN Turning Inserts

MANANOVA PCBN inserts are superhard turning inserts designed for hardened steels (ISO H), cast irons and ductile irons (ISO K), and powder metals (ISO S). The program supports stable machining from continuous to interrupted cutting by offering grade families with different toughness/wear balances and coating concepts—making it easier to select a reliable insert for your exact interruption level and material group.

Why these inserts

Fast delivery, easy ordering for common hardened/cast/powder-metal turning tasks
Material-focused grade families for ISO H / ISO K / ISO S with defined first-choice guidance
Interruption-based selection covering continuous, light, medium, and heavy interrupted cutting
Broad standard shape coverage across common ISO insert styles for finishing to general turning

Typical PCBN grade families (selection by material & interruption)

MHN series: first-choice for ISO H (hardened steels), with variants aligned to continuous through heavier interruption

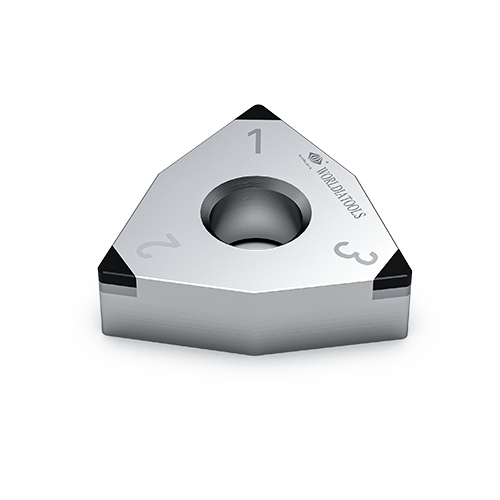

MKN series: first-choice for ISO K (cast iron / ductile iron), supporting stable wear behaviour at practical cutting speeds
MSN series: first-choice for ISO S (powder metals), supporting reliable machining in demanding PM applications

Typical insert families

MANANOVA PCBN includes common ISO turning shapes and sizes (e.g., C-, D-, V-, T- and negative styles such as CN/DN/TN/WN) for hard turning and cast-iron turning, with grade availability mapped to material group and interruption level.

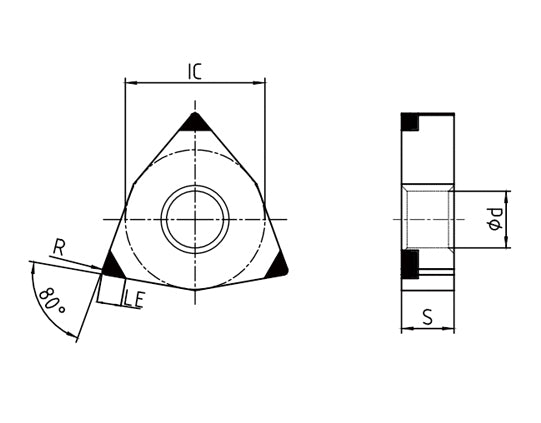

Turning insert dimensions

EdgeVend Article Number	Manufacturer Part Number	Inscribed Circle IC(mm)	Thickness S(mm)	Corner Radius R(mm)	Clamp Hole Ød(mm)	Index count
EV-TI-0000472	MN00847	6.35	4.76	0.4	2.8	3
EV-TI-0000473	MN00644	12.7	4.76	0.4	5.16	3
EV-TI-0000474	MN00499	12.7	4.76	0.4	5.16	3
EV-TI-0000475	MN00645	12.7	4.76	0.4	5.16	3
EV-TI-0000476	MN00339	12.7	4.76	0.4	5.16	3
EV-TI-0000477	MN00340	12.7	4.76	0.4	5.16	3
EV-TI-0000478	MN00341	12.7	4.76	0.4	5.16	3
EV-TI-0000479	MN00772	12.7	4.76	0.4	5.16	3
EV-TI-0000480	MN00500	12.7	4.76	0.8	5.16	3
EV-TI-0000481	MN00501	12.7	4.76	0.8	5.16	3
EV-TI-0000482	MN00646	12.7	4.76	0.8	5.16	3
EV-TI-0000483	MN00345	12.7	4.76	0.8	5.16	3
EV-TI-0000484	MN00346	12.7	4.76	0.8	5.16	3
EV-TI-0000485	MN00347	12.7	4.76	0.8	5.16	3
EV-TI-0000486	MN00773	12.7	4.76	0.8	5.16	3
EV-TI-0000487	MN00801	12.7	4.76	1.2	5.16	3
EV-TI-0000488	MN00802	12.7	4.76	1.2	5.16	3
EV-TI-0000489	MN00803	12.7	4.76	1.2	5.16	3
Please choose options to see the values.

Turning cutting data

Material

Operation

Interruption

Stage

ISO	Material	Operation	Interruption	Stage	Coolant	vc min(m/min)	vc typ(m/min)	vc max(m/min)	fn min(mm/rev)	fn typ(mm/rev)	fn max(mm/rev)	ap min(mm)	ap typ(mm)	ap max(mm)
