Описание
Моля, започнете с избор на фрезова система, за да намерите правилната пластина.
Към фрезовите системиТаблица с размери

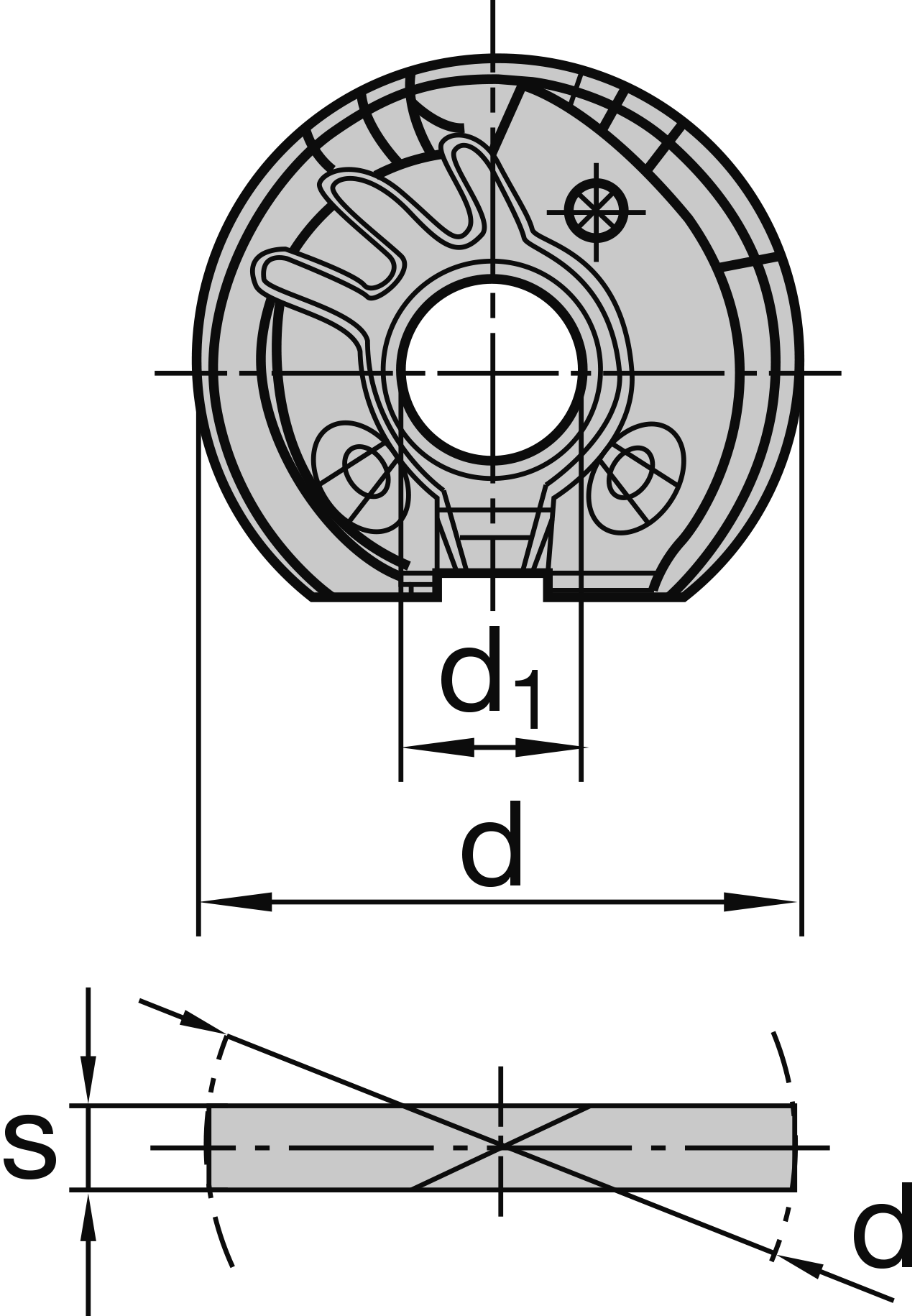

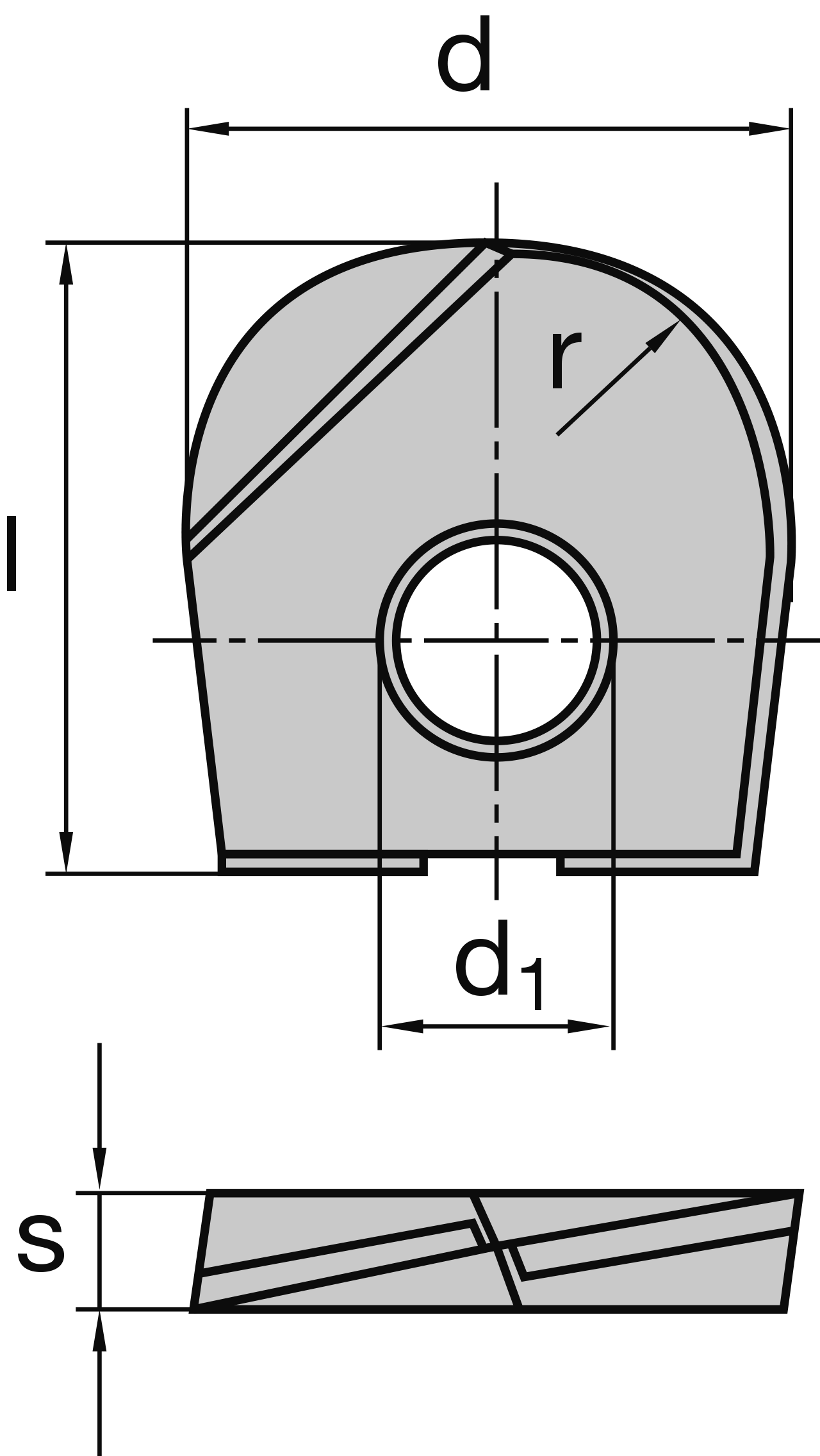

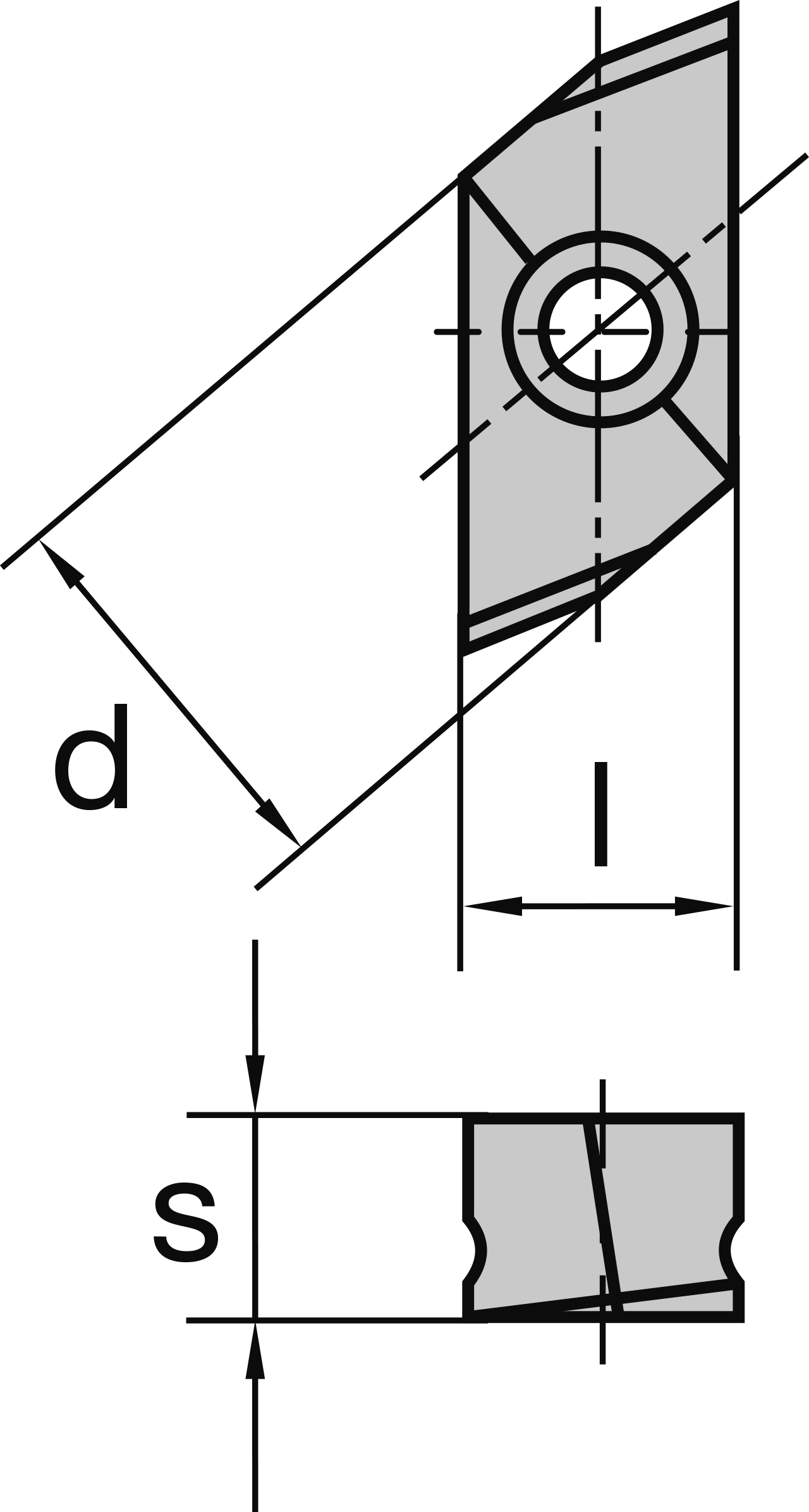

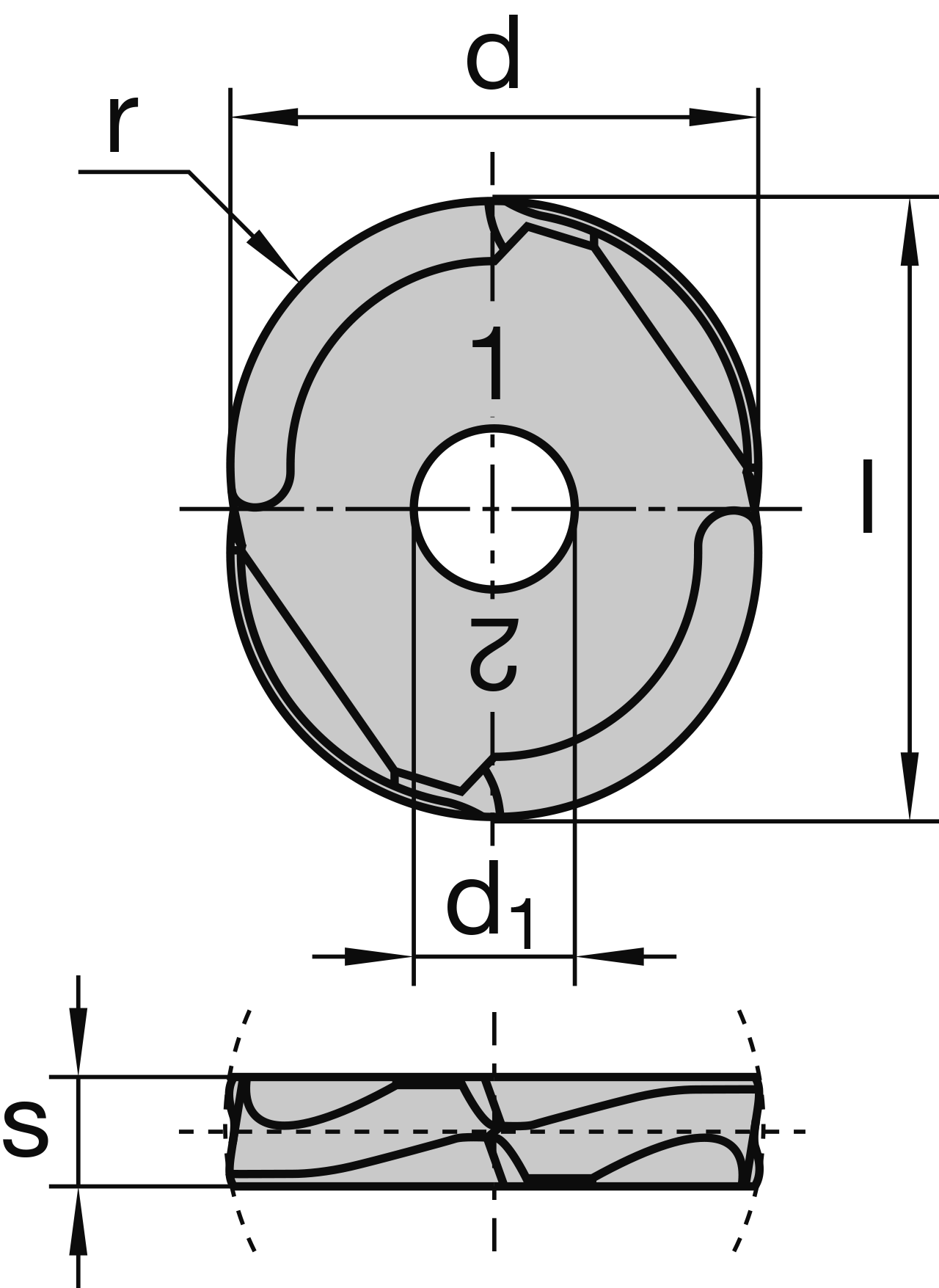

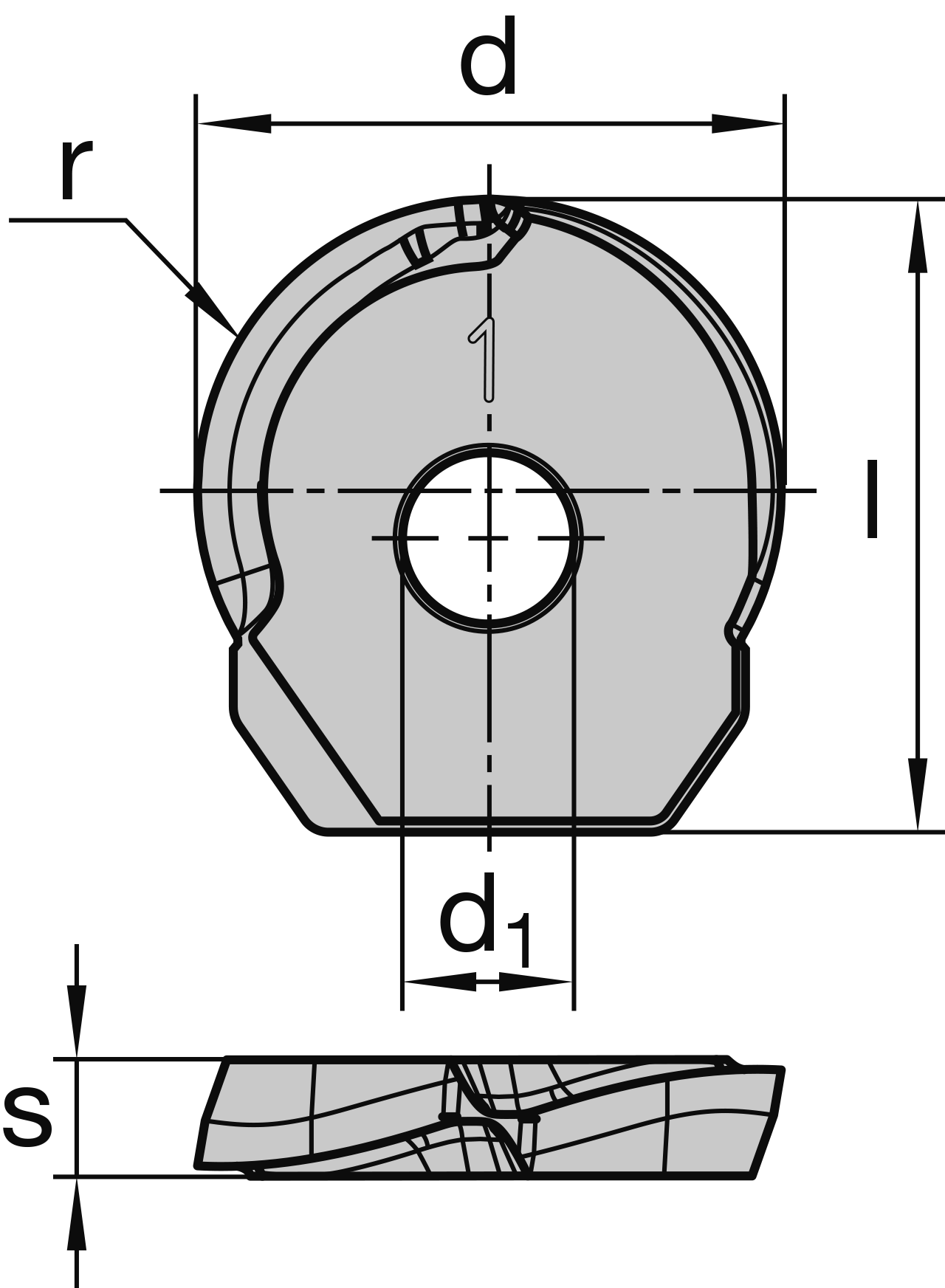

| EdgeVend Артикулен номер | Каталожен номер на производителя | Дължина на режещия ръб l(mm) | Ширина d(mm) | Дебелина s(mm) | Закрепващ отвор d1(mm) | Ъглов радиус r(mm) | Брой режещи ръбове |
|---|---|---|---|---|---|---|---|
| EV-MI-0000585 | 7167562 | — | — | 3.4 | 5.7 | — | 2 |
| EV-MI-0000591 | 7189772 | — | — | 5.3 | 8.9 | — | 2 |
| EV-MI-0000622 | 7189771 | — | — | 5.3 | 8.9 | — | 2 |
| EV-MI-0000620 | 7167188 | — | — | 4.4 | 6.2 | — | 2 |
| EV-MI-0000618 | 7167186 | — | — | 2.5 | 5.2 | — | 2 |
| EV-MI-0000619 | 7167187 | — | — | 3.4 | 5.7 | — | 2 |
| EV-MI-0000582 | 7167561 | — | — | 2.5 | 5.2 | — | 2 |
| EV-MI-0000588 | 7167563 | — | — | 4.4 | 6.2 | — | 2 |
| EV-MI-0000513 | 7234965 | — | — | 2.5 | 5.2 | — | 1 |
| EV-MI-0000586 | 7234967 | — | — | 3.4 | 5.7 | — | 1 |
| EV-MI-0000583 | 7234964 | — | — | 2.5 | 5.2 | — | 1 |
| EV-MI-0000573 | 7234963 | — | — | 2.5 | 5.2 | — | 1 |
| EV-MI-0000589 | 7234970 | — | — | 4.4 | 6.2 | — | 1 |
| EV-MI-0000515 | 7234971 | — | — | 4.4 | 6.2 | — | 1 |
| EV-MI-0000575 | 7234966 | — | — | 3.4 | 5.7 | — | 1 |
| EV-MI-0000577 | 7234969 | — | — | 4.4 | 6.2 | — | 1 |
| EV-MI-0000571 | 7245455 | — | — | 2.2 | 4.5 | — | 1 |
| EV-MI-0000514 | 7234968 | — | — | 3.4 | 5.7 | — | 1 |
| EV-MI-0000512 | 7245457 | — | — | 2.2 | 4.5 | — | 1 |
| EV-MI-0000580 | 7245456 | — | — | 2.2 | 4.5 | — | 1 |
| EV-MI-0000484 | 7479960 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000487 | 7479961 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000478 | 7479958 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000481 | 7479959 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000475 | 7479957 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000576 | 7214305 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000581 | 9076995 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000592 | 9074078 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000501 | 9080645 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000578 | 7214306 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000500 | 9080644 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000502 | 7016820 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000590 | 6183218 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000584 | 6183222 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000574 | 7214304 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000572 | 7214303 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000587 | 6183220 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000579 | 7214307 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000499 | 9080642 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000498 | 7016769 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000623 | 9120405 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000621 | 9120404 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000530 | 9078163 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000526 | 9078161 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000594 | 6122963 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000547 | 6132341 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000532 | 9077244 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000534 | 9078164 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000545 | 6132339 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000603 | 6123006 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000537 | 6132336 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000524 | 9078160 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000522 | 9078159 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000550 | 6132342 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000597 | 6123043 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000609 | 6122984 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000543 | 6131617 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000600 | 6123024 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000539 | 6132337 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000528 | 6131685 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000541 | 6132338 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000606 | 6123004 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000562 | 7214286 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000455 | 7108904 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000544 | 7108845 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000452 | 7108874 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000556 | 7214282 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000546 | 7108848 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000485 | 7478060 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000538 | 7108873 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000482 | 7478059 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000491 | 7478062 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000473 | 7478056 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000551 | 7108861 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000564 | 7214287 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000488 | 7478061 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000461 | 7108846 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000470 | 7108862 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000540 | 7108902 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000479 | 7478058 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000560 | 7214285 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000566 | 7214288 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000467 | 7108855 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000542 | 7108961 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000458 | 7108963 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000472 | 7478055 | — | — | 1.6 | 2.5 | — | 1 |
| EV-MI-0000548 | 7108854 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000476 | 7478057 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000554 | 7214281 | — | — | 1.6 | 2.5 | — | 1 |
| EV-MI-0000558 | 7214284 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000464 | 7108849 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000569 | 7214289 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000536 | 7108973 | — | — | 1.6 | 2.5 | — | 1 |
| EV-MI-0000607 | 6131305 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000520 | 9074409 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000595 | 6131629 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000516 | 9079232 | — | — | 1.6 | 2.5 | — | 1 |
| EV-MI-0000614 | 6131307 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000593 | 6132363 | — | — | 1.6 | 2.5 | — | 1 |
| EV-MI-0000610 | 6131306 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000517 | 9074406 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000519 | 6132329 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000604 | 6131304 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000521 | 6132089 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000601 | 6131303 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000598 | 6131302 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000518 | 6132330 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000468 | 7108509 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000531 | 9078156 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000567 | 7214257 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000628 | 6180175 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000626 | 6123140 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000599 | 6123172 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000527 | 9078155 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000627 | 6123122 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000509 | 7108508 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000459 | 7108499 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000505 | 7108490 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000504 | 7108479 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000602 | 6123153 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000559 | 7214253 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000624 | 6123180 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000533 | 9078157 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000596 | 6123058 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000508 | 7108503 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000565 | 7214256 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000456 | 7108491 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000471 | 7108562 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000523 | 9078153 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000503 | 7108571 | — | — | 1.6 | 2.5 | — | 1 |
| EV-MI-0000608 | 6123117 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000529 | 6131686 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000453 | 7108486 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000563 | 7214255 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000561 | 7214254 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000535 | 9078158 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000570 | 7214259 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000506 | 7108498 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000525 | 9078154 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000557 | 7214252 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000615 | 6123076 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000507 | 7108501 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000511 | 7108561 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000631 | 6180254 | — | — | 5.0 | 8.0 | — | 1 |
| EV-MI-0000611 | 6123099 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000555 | 7214248 | — | — | 1.6 | 2.5 | — | 1 |
| EV-MI-0000605 | 6123135 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000625 | 6123159 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000462 | 7108502 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000460 | 7057313 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000495 | 7057314 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000463 | 7057315 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000486 | 7477925 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000469 | 7100736 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000474 | 7477920 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000454 | 7100808 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000494 | 7057312 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000477 | 7477922 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000457 | 7100804 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000483 | 7477924 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000466 | 7057317 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000492 | 7100806 | — | — | 2.0 | 3.0 | — | 1 |
| EV-MI-0000480 | 7477923 | — | — | 2.5 | 5.0 | — | 1 |
| EV-MI-0000497 | 7100734 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000489 | 7477926 | — | — | 4.0 | 6.0 | — | 1 |
| EV-MI-0000493 | 7100801 | — | — | 2.5 | 4.0 | — | 1 |
| EV-MI-0000496 | 7057316 | — | — | 3.0 | 5.0 | — | 1 |
| EV-MI-0000633 | 6122414 | — | — | 4.97 | 4.4 | — | 2 |
| EV-MI-0000553 | 6122419 | — | — | 4.97 | 4.4 | — | 2 |
| Моля, изберете опции, за да видите стойностите. | |||||||
| ISO | Материал | Операция | Етап на обработка | Охлаждаща течност | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Макс. рампа(°) |
|---|
