Beskrivelse

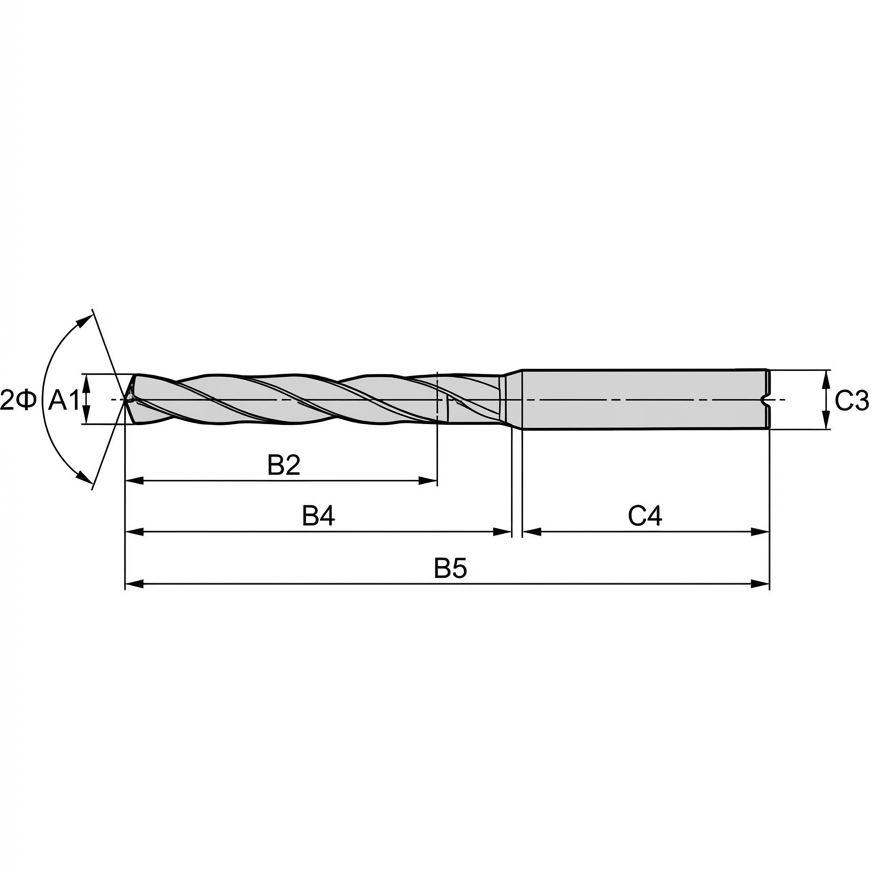

Produktmål (se produktbilleder for mål)
| EV SKU | Manufacturer Part Number |
A1 | LxD | DIN | C3(mm) | B2(mm) | B4(mm) | B5(mm) | C4(mm) | 2Φ(°) | z |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-SD-0000001 | W08 0300 | 3 | 3xD | DIN6535HA | 6.0 | 14.0 | 14.0 | 62.0 | 36.0 | 140 | 2 |
| EV-SD-0000110 | W09 0300 | 3 | 5xD | DIN6535HA | 6.0 | 23.0 | 23.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000002 | W08 0310 | 3.1 | 3xD | DIN6535HA | 6.0 | 14.0 | 14.0 | 62.0 | 36.0 | 140 | 2 |
| EV-SD-0000111 | W09 0310 | 3.1 | 5xD | DIN6535HA | 6.0 | 23.0 | 23.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000003 | W08 0320 | 3.2 | 3xD | DIN6535HA | 6.0 | 14.0 | 14.0 | 62.0 | 36.0 | 140 | 2 |
| EV-SD-0000112 | W09 0320 | 3.2 | 5xD | DIN6535HA | 6.0 | 23.0 | 23.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000004 | W08 0330 | 3.3 | 3xD | DIN6535HA | 6.0 | 14.0 | 14.0 | 62.0 | 36.0 | 140 | 2 |
| EV-SD-0000113 | W09 0330 | 3.3 | 5xD | DIN6535HA | 6.0 | 23.0 | 23.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000005 | W08 0340 | 3.4 | 3xD | DIN6535HA | 6.0 | 14.0 | 14.0 | 62.0 | 36.0 | 140 | 2 |
| EV-SD-0000114 | W09 0340 | 3.4 | 5xD | DIN6535HA | 6.0 | 23.0 | 23.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000006 | W08 0350 | 3.5 | 3xD | DIN6535HA | 6.0 | 14.0 | 14.0 | 62.0 | 36.0 | 140 | 2 |
| EV-SD-0000115 | W09 0350 | 3.5 | 5xD | DIN6535HA | 6.0 | 23.0 | 23.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000007 | W08 0360 | 3.6 | 3xD | DIN6535HA | 6.0 | 14.0 | 14.0 | 62.0 | 36.0 | 140 | 2 |
| EV-SD-0000116 | W09 0360 | 3.6 | 5xD | DIN6535HA | 6.0 | 23.0 | 23.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000008 | W08 0370 | 3.7 | 3xD | DIN6535HA | 6.0 | 14.0 | 14.0 | 62.0 | 36.0 | 140 | 2 |
| EV-SD-0000117 | W09 0370 | 3.7 | 5xD | DIN6535HA | 6.0 | 23.0 | 23.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000009 | W08 0380 | 3.8 | 3xD | DIN6535HA | 6.0 | 17.0 | 17.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000118 | W09 0380 | 3.8 | 5xD | DIN6535HA | 6.0 | 29.0 | 29.0 | 74.0 | 36.0 | 140 | 2 |
| EV-SD-0000010 | W08 0390 | 3.9 | 3xD | DIN6535HA | 6.0 | 17.0 | 17.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000119 | W09 0390 | 3.9 | 5xD | DIN6535HA | 6.0 | 29.0 | 29.0 | 74.0 | 36.0 | 140 | 2 |
| EV-SD-0000011 | W08 0400 | 4 | 3xD | DIN6535HA | 6.0 | 17.0 | 17.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000120 | W09 0400 | 4 | 5xD | DIN6535HA | 6.0 | 29.0 | 29.0 | 74.0 | 36.0 | 140 | 2 |
| EV-SD-0000012 | W08 0410 | 4.1 | 3xD | DIN6535HA | 6.0 | 17.0 | 17.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000121 | W09 0410 | 4.1 | 5xD | DIN6535HA | 6.0 | 29.0 | 29.0 | 74.0 | 36.0 | 140 | 2 |
| EV-SD-0000013 | W08 0420 | 4.2 | 3xD | DIN6535HA | 6.0 | 17.0 | 17.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000122 | W09 0420 | 4.2 | 5xD | DIN6535HA | 6.0 | 29.0 | 29.0 | 74.0 | 36.0 | 140 | 2 |
| EV-SD-0000014 | W08 0430 | 4.3 | 3xD | DIN6535HA | 6.0 | 17.0 | 17.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000123 | W09 0430 | 4.3 | 5xD | DIN6535HA | 6.0 | 29.0 | 29.0 | 74.0 | 36.0 | 140 | 2 |
| EV-SD-0000015 | W08 0440 | 4.4 | 3xD | DIN6535HA | 6.0 | 17.0 | 17.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000124 | W09 0440 | 4.4 | 5xD | DIN6535HA | 6.0 | 29.0 | 29.0 | 74.0 | 36.0 | 140 | 2 |
| EV-SD-0000016 | W08 0450 | 4.5 | 3xD | DIN6535HA | 6.0 | 17.0 | 17.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000125 | W09 0450 | 4.5 | 5xD | DIN6535HA | 6.0 | 29.0 | 29.0 | 74.0 | 36.0 | 140 | 2 |
| EV-SD-0000017 | W08 0460 | 4.6 | 3xD | DIN6535HA | 6.0 | 17.0 | 17.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000126 | W09 0460 | 4.6 | 5xD | DIN6535HA | 6.0 | 29.0 | 29.0 | 74.0 | 36.0 | 140 | 2 |
| EV-SD-0000018 | W08 0470 | 4.7 | 3xD | DIN6535HA | 6.0 | 17.0 | 17.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000127 | W09 0470 | 4.7 | 5xD | DIN6535HA | 6.0 | 29.0 | 29.0 | 74.0 | 36.0 | 140 | 2 |
| EV-SD-0000019 | W08 0480 | 4.8 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000128 | W09 0480 | 4.8 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000020 | W08 0490 | 4.9 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000129 | W09 0490 | 4.9 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000021 | W08 0500 | 5 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000130 | W09 0500 | 5 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000022 | W08 0510 | 5.1 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000131 | W09 0510 | 5.1 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000023 | W08 0520 | 5.2 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000132 | W09 0520 | 5.2 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000024 | W08 0530 | 5.3 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000133 | W09 0530 | 5.3 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000025 | W08 0540 | 5.4 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000134 | W09 0540 | 5.4 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000026 | W08 0550 | 5.5 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000135 | W09 0550 | 5.5 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000027 | W08 0560 | 5.6 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000136 | W09 0560 | 5.6 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000028 | W08 0570 | 5.7 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000137 | W09 0570 | 5.7 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000029 | W08 0580 | 5.8 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000138 | W09 0580 | 5.8 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000030 | W08 0590 | 5.9 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000139 | W09 0590 | 5.9 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000031 | W08 0600 | 6 | 3xD | DIN6535HA | 6.0 | 20.0 | 20.0 | 66.0 | 36.0 | 140 | 2 |
| EV-SD-0000140 | W09 0600 | 6 | 5xD | DIN6535HA | 6.0 | 35.0 | 35.0 | 82.0 | 36.0 | 140 | 2 |
| EV-SD-0000032 | W08 0610 | 6.1 | 3xD | DIN6535HA | 8.0 | 24.0 | 24.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000141 | W09 0610 | 6.1 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000033 | W08 0620 | 6.2 | 3xD | DIN6535HA | 8.0 | 24.0 | 24.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000142 | W09 0620 | 6.2 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000034 | W08 0630 | 6.3 | 3xD | DIN6535HA | 8.0 | 24.0 | 24.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000143 | W09 0630 | 6.3 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000035 | W08 0640 | 6.4 | 3xD | DIN6535HA | 8.0 | 24.0 | 24.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000144 | W09 0640 | 6.4 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000036 | W08 0650 | 6.5 | 3xD | DIN6535HA | 8.0 | 24.0 | 24.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000145 | W09 0650 | 6.5 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000037 | W08 0660 | 6.6 | 3xD | DIN6535HA | 8.0 | 24.0 | 24.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000146 | W09 0660 | 6.6 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000038 | W08 0670 | 6.7 | 3xD | DIN6535HA | 8.0 | 24.0 | 24.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000147 | W09 0670 | 6.7 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000039 | W08 0680 | 6.8 | 3xD | DIN6535HA | 8.0 | 24.0 | 24.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000148 | W09 0680 | 6.8 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000040 | W08 0690 | 6.9 | 3xD | DIN6535HA | 8.0 | 24.0 | 24.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000149 | W09 0690 | 6.9 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000041 | W08 0700 | 7 | 3xD | DIN6535HA | 8.0 | 24.0 | 24.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000150 | W09 0700 | 7 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000042 | W08 0710 | 7.1 | 3xD | DIN6535HA | 8.0 | 29.0 | 29.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000151 | W09 0710 | 7.1 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000043 | W08 0720 | 7.2 | 3xD | DIN6535HA | 8.0 | 29.0 | 29.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000152 | W09 0720 | 7.2 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000044 | W08 0730 | 7.3 | 3xD | DIN6535HA | 8.0 | 29.0 | 29.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000153 | W09 0730 | 7.3 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000045 | W08 0740 | 7.4 | 3xD | DIN6535HA | 8.0 | 29.0 | 29.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000154 | W09 0740 | 7.4 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000046 | W08 0750 | 7.5 | 3xD | DIN6535HA | 8.0 | 29.0 | 29.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000155 | W09 0750 | 7.5 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000047 | W08 0760 | 7.6 | 3xD | DIN6535HA | 8.0 | 29.0 | 29.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000156 | W09 0760 | 7.6 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000048 | W08 0770 | 7.7 | 3xD | DIN6535HA | 8.0 | 29.0 | 29.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000157 | W09 0770 | 7.7 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000049 | W08 0780 | 7.8 | 3xD | DIN6535HA | 8.0 | 29.0 | 29.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000158 | W09 0780 | 7.8 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000050 | W08 0790 | 7.9 | 3xD | DIN6535HA | 8.0 | 29.0 | 29.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000159 | W09 0790 | 7.9 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000051 | W08 0800 | 8 | 3xD | DIN6535HA | 8.0 | 29.0 | 29.0 | 79.0 | 36.0 | 140 | 2 |
| EV-SD-0000160 | W09 0800 | 8 | 5xD | DIN6535HA | 8.0 | 43.0 | 43.0 | 91.0 | 36.0 | 140 | 2 |
| EV-SD-0000052 | W08 0810 | 8.1 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000161 | W09 0810 | 8.1 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000053 | W08 0820 | 8.2 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000162 | W09 0820 | 8.2 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000054 | W08 0830 | 8.3 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000163 | W09 0830 | 8.3 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000055 | W08 0840 | 8.4 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000164 | W09 0840 | 8.4 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000056 | W08 0850 | 8.5 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000165 | W09 0850 | 8.5 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000057 | W08 0860 | 8.6 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000166 | W09 0860 | 8.6 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000058 | W08 0870 | 8.7 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000167 | W09 0870 | 8.7 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000059 | W08 0880 | 8.8 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000168 | W09 0880 | 8.8 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000060 | W08 0890 | 8.9 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000169 | W09 0890 | 8.9 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000061 | W08 0900 | 9 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000170 | W09 0900 | 9 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000062 | W08 0910 | 9.1 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000171 | W09 0910 | 9.1 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000063 | W08 0920 | 9.2 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000172 | W09 0920 | 9.2 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000064 | W08 0930 | 9.3 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000173 | W09 0930 | 9.3 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000065 | W08 0940 | 9.4 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000174 | W09 0940 | 9.4 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000066 | W08 0950 | 9.5 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000175 | W09 0950 | 9.5 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000067 | W08 0960 | 9.6 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000176 | W09 0960 | 9.6 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000068 | W08 0970 | 9.7 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000177 | W09 0970 | 9.7 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000069 | W08 0980 | 9.8 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000178 | W09 0980 | 9.8 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000070 | W08 0990 | 9.9 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000179 | W09 0990 | 9.9 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000071 | W08 1000 | 10 | 3xD | DIN6535HA | 10.0 | 35.0 | 35.0 | 89.0 | 40.0 | 140 | 2 |
| EV-SD-0000180 | W09 1000 | 10 | 5xD | DIN6535HA | 10.0 | 49.0 | 49.0 | 103.0 | 40.0 | 140 | 2 |
| EV-SD-0000072 | W08 1010 | 10.1 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000073 | W08 1020 | 10.2 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000181 | W09 1020 | 10.2 | 5xD | DIN6535HA | 12.0 | 56.0 | 56.0 | 118.0 | 45.0 | 140 | 2 |
| EV-SD-0000074 | W08 1030 | 10.3 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000075 | W08 1040 | 10.4 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000076 | W08 1050 | 10.5 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000182 | W09 1050 | 10.5 | 5xD | DIN6535HA | 12.0 | 56.0 | 56.0 | 118.0 | 45.0 | 140 | 2 |
| EV-SD-0000077 | W08 1060 | 10.6 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000078 | W08 1070 | 10.7 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000079 | W08 1080 | 10.8 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000183 | W09 1080 | 10.8 | 5xD | DIN6535HA | 12.0 | 56.0 | 56.0 | 118.0 | 45.0 | 140 | 2 |
| EV-SD-0000080 | W08 1090 | 10.9 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000081 | W08 1100 | 11 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000184 | W09 1100 | 11 | 5xD | DIN6535HA | 12.0 | 56.0 | 56.0 | 118.0 | 45.0 | 140 | 2 |
| EV-SD-0000082 | W08 1110 | 11.1 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000083 | W08 1120 | 11.2 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000185 | W09 1120 | 11.2 | 5xD | DIN6535HA | 12.0 | 56.0 | 56.0 | 118.0 | 45.0 | 140 | 2 |
| EV-SD-0000084 | W08 1130 | 11.3 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000186 | W09 1130 | 11.3 | 5xD | DIN6535HA | 12.0 | 56.0 | 56.0 | 118.0 | 45.0 | 140 | 2 |
| EV-SD-0000085 | W08 1140 | 11.4 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000086 | W08 1150 | 11.5 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000187 | W09 1150 | 11.5 | 5xD | DIN6535HA | 12.0 | 56.0 | 56.0 | 118.0 | 45.0 | 140 | 2 |
| EV-SD-0000087 | W08 1160 | 11.6 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000088 | W08 1170 | 11.7 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000089 | W08 1180 | 11.8 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000188 | W09 1180 | 11.8 | 5xD | DIN6535HA | 12.0 | 56.0 | 56.0 | 118.0 | 45.0 | 140 | 2 |
| EV-SD-0000090 | W08 1190 | 11.9 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000091 | W08 1200 | 12 | 3xD | DIN6535HA | 12.0 | 40.0 | 40.0 | 102.0 | 45.0 | 140 | 2 |
| EV-SD-0000189 | W09 1200 | 12 | 5xD | DIN6535HA | 12.0 | 56.0 | 56.0 | 118.0 | 45.0 | 140 | 2 |
| EV-SD-0000190 | W09 1220 | 12.2 | 5xD | DIN6535HA | 14.0 | 60.0 | 60.0 | 124.0 | 45.0 | 140 | 2 |
| EV-SD-0000092 | W08 1250 | 12.5 | 3xD | DIN6535HA | 14.0 | 43.0 | 43.0 | 107.0 | 45.0 | 140 | 2 |
| EV-SD-0000191 | W09 1250 | 12.5 | 5xD | DIN6535HA | 14.0 | 60.0 | 60.0 | 124.0 | 45.0 | 140 | 2 |
| EV-SD-0000093 | W08 1270 | 12.7 | 3xD | DIN6535HA | 14.0 | 43.0 | 43.0 | 107.0 | 45.0 | 140 | 2 |
| EV-SD-0000192 | W09 1270 | 12.7 | 5xD | DIN6535HA | 14.0 | 60.0 | 60.0 | 124.0 | 45.0 | 140 | 2 |
| EV-SD-0000193 | W09 1280 | 12.8 | 5xD | DIN6535HA | 14.0 | 60.0 | 60.0 | 124.0 | 45.0 | 140 | 2 |
| EV-SD-0000094 | W08 1300 | 13 | 3xD | DIN6535HA | 14.0 | 43.0 | 43.0 | 107.0 | 45.0 | 140 | 2 |
| EV-SD-0000194 | W09 1300 | 13 | 5xD | DIN6535HA | 14.0 | 60.0 | 60.0 | 124.0 | 45.0 | 140 | 2 |
| EV-SD-0000195 | W09 1330 | 13.3 | 5xD | DIN6535HA | 14.0 | 60.0 | 60.0 | 124.0 | 45.0 | 140 | 2 |
| EV-SD-0000095 | W08 1350 | 13.5 | 3xD | DIN6535HA | 14.0 | 43.0 | 43.0 | 107.0 | 45.0 | 140 | 2 |
| EV-SD-0000196 | W09 1350 | 13.5 | 5xD | DIN6535HA | 14.0 | 60.0 | 60.0 | 124.0 | 45.0 | 140 | 2 |
| EV-SD-0000096 | W08 1370 | 13.7 | 3xD | DIN6535HA | 14.0 | 43.0 | 43.0 | 107.0 | 45.0 | 140 | 2 |
| EV-SD-0000197 | W09 1370 | 13.7 | 5xD | DIN6535HA | 14.0 | 60.0 | 60.0 | 124.0 | 45.0 | 140 | 2 |
| EV-SD-0000198 | W09 1380 | 13.8 | 5xD | DIN6535HA | 14.0 | 60.0 | 60.0 | 124.0 | 45.0 | 140 | 2 |
| EV-SD-0000097 | W08 1400 | 14 | 3xD | DIN6535HA | 14.0 | 43.0 | 43.0 | 107.0 | 45.0 | 140 | 2 |
| EV-SD-0000199 | W09 1400 | 14 | 5xD | DIN6535HA | 14.0 | 60.0 | 60.0 | 124.0 | 45.0 | 140 | 2 |
| EV-SD-0000098 | W08 1450 | 14.5 | 3xD | DIN6535HA | 16.0 | 45.0 | 45.0 | 115.0 | 48.0 | 140 | 2 |
| EV-SD-0000200 | W09 1450 | 14.5 | 5xD | DIN6535HA | 16.0 | 63.0 | 63.0 | 133.0 | 48.0 | 140 | 2 |
| EV-SD-0000099 | W08 1500 | 15 | 3xD | DIN6535HA | 16.0 | 45.0 | 45.0 | 115.0 | 48.0 | 140 | 2 |
| EV-SD-0000201 | W09 1500 | 15 | 5xD | DIN6535HA | 16.0 | 63.0 | 63.0 | 133.0 | 48.0 | 140 | 2 |
| EV-SD-0000202 | W09 1530 | 15.3 | 5xD | DIN6535HA | 16.0 | 63.0 | 63.0 | 133.0 | 48.0 | 140 | 2 |
| EV-SD-0000100 | W08 1550 | 15.5 | 3xD | DIN6535HA | 16.0 | 45.0 | 45.0 | 115.0 | 48.0 | 140 | 2 |
| EV-SD-0000203 | W09 1550 | 15.5 | 5xD | DIN6535HA | 16.0 | 63.0 | 63.0 | 133.0 | 48.0 | 140 | 2 |
| EV-SD-0000204 | W09 1580 | 15.8 | 5xD | DIN6535HA | 16.0 | 63.0 | 63.0 | 133.0 | 48.0 | 140 | 2 |
| EV-SD-0000101 | W08 1600 | 16 | 3xD | DIN6535HA | 16.0 | 45.0 | 45.0 | 115.0 | 48.0 | 140 | 2 |
| EV-SD-0000205 | W09 1600 | 16 | 5xD | DIN6535HA | 16.0 | 63.0 | 63.0 | 133.0 | 48.0 | 140 | 2 |
| EV-SD-0000102 | W08 1650 | 16.5 | 3xD | DIN6535HA | 18.0 | 51.0 | 51.0 | 123.0 | 48.0 | 140 | 2 |
| EV-SD-0000206 | W09 1650 | 16.5 | 5xD | DIN6535HA | 18.0 | 71.0 | 71.0 | 143.0 | 48.0 | 140 | 2 |
| EV-SD-0000103 | W08 1700 | 17 | 3xD | DIN6535HA | 18.0 | 51.0 | 51.0 | 123.0 | 48.0 | 140 | 2 |
| EV-SD-0000207 | W09 1700 | 17 | 5xD | DIN6535HA | 18.0 | 71.0 | 71.0 | 143.0 | 48.0 | 140 | 2 |
| EV-SD-0000104 | W08 1750 | 17.5 | 3xD | DIN6535HA | 18.0 | 51.0 | 51.0 | 123.0 | 48.0 | 140 | 2 |
| EV-SD-0000208 | W09 1750 | 17.5 | 5xD | DIN6535HA | 18.0 | 71.0 | 71.0 | 143.0 | 48.0 | 140 | 2 |
| EV-SD-0000105 | W08 1800 | 18 | 3xD | DIN6535HA | 18.0 | 51.0 | 51.0 | 123.0 | 48.0 | 140 | 2 |
| EV-SD-0000209 | W09 1800 | 18 | 5xD | DIN6535HA | 18.0 | 71.0 | 71.0 | 143.0 | 48.0 | 140 | 2 |
| EV-SD-0000106 | W08 1850 | 18.5 | 3xD | DIN6535HA | 20.0 | 55.0 | 55.0 | 131.0 | 50.0 | 140 | 2 |
| EV-SD-0000210 | W09 1850 | 18.5 | 5xD | DIN6535HA | 20.0 | 77.0 | 77.0 | 153.0 | 50.0 | 140 | 2 |
| EV-SD-0000107 | W08 1900 | 19 | 3xD | DIN6535HA | 20.0 | 55.0 | 55.0 | 131.0 | 50.0 | 140 | 2 |
| EV-SD-0000211 | W09 1900 | 19 | 5xD | DIN6535HA | 20.0 | 77.0 | 77.0 | 153.0 | 50.0 | 140 | 2 |
| EV-SD-0000108 | W08 1950 | 19.5 | 3xD | DIN6535HA | 20.0 | 55.0 | 55.0 | 131.0 | 50.0 | 140 | 2 |
| EV-SD-0000212 | W09 1950 | 19.5 | 5xD | DIN6535HA | 20.0 | 77.0 | 77.0 | 153.0 | 50.0 | 140 | 2 |
| EV-SD-0000109 | W08 2000 | 20 | 3xD | DIN6535HA | 20.0 | 55.0 | 55.0 | 131.0 | 50.0 | 140 | 2 |
| EV-SD-0000213 | W09 2000 | 20 | 5xD | DIN6535HA | 20.0 | 77.0 | 77.0 | 153.0 | 50.0 | 140 | 2 |
| Please choose options to see the values. | |||||||||||
Anvendelse (find dine rigtige skæredata)
| ISO | Material | Operation | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fn min | fn typ | fn max |
|---|---|---|---|---|---|---|---|---|---|
| Start here: Please choose a variant. | |||||||||
