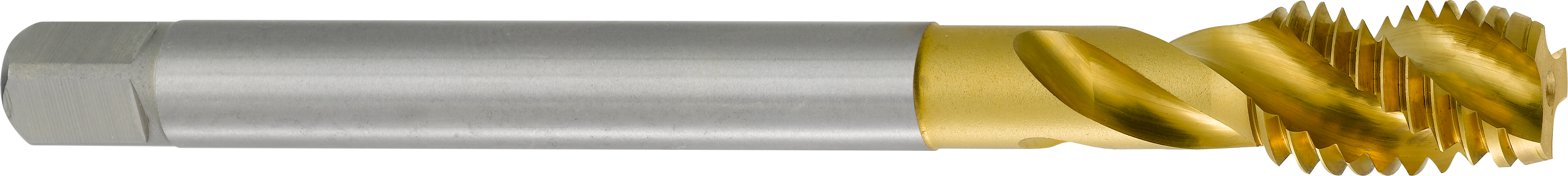

6582C produktfoto
Teknisk skitse af Tap
Roll over image to zoom in Klik på billedet for at zoome
6511C UNI produktfoto6582C produktfotoTeknisk skitse af Tap

LMT-Tools EASYTap til bundhuller M

LMT-Tools
Gevind: M1x0,25-4HX-C
Maks. gevindlængde: 5
Samlet længde: 40
Pris:
€23,00

Minimum 3 / trin på 3

Beskrivelse

Produktmål (se produktbilleder for mål)

EV SKU Manufacturer
Part
Number		 A1 Tolerance Form DIN B2(mm) B4(mm) B5(mm) C3(mm) □(mm)
EV-TA-0000092 7465287 M1x0,25-4HX 4HX C DIN371 5.0 8.5 40.0 2.5 2.1
EV-TA-0000093 7465288 M1,1x0,25-4HX 4HX C DIN371 5.0 9.5 40.0 2.5 2.1
EV-TA-0000094 7465289 M1,2x0,25-4HX 4HX C DIN371 5.0 9.5 40.0 2.5 2.1
EV-TA-0000095 7465290 M1,4x0,3-6HX 6HX C DIN371 6.0 11.5 40.0 2.5 2.1
EV-TA-0000096 7465291 M1,6x0,35-6HX 6HX C DIN371 7.0 13.5 40.0 2.5 2.1
EV-TA-0000097 7465292 M1,7x0,35-6HX 6HX C DIN371 8.0 13.5 40.0 2.5 2.1
EV-TA-0000098 7465293 M1,8x0,35-6HX 6HX C DIN371 8.0 13.5 40.0 2.5 2.1
EV-TA-0000099 7465294 M2x0,4-6HX 6HX C DIN371 3.2 10.0 45.0 2.8 2.1
EV-TA-0000100 7465295 M2,2x0,45-6HX 6HX C DIN371 3.6 11.0 45.0 2.8 2.1
EV-TA-0000101 7465296 M2,3x0,4-6HX 6HX C DIN371 3.6 11.0 45.0 2.8 2.1
EV-TA-0000102 7465297 M2,5x0,45-6HX 6HX C DIN371 3.6 13.0 50.0 2.8 2.1
EV-TA-0000103 7465298 M2,6x0,45-6HX 6HX C DIN371 3.6 13.0 50.0 2.8 2.1
EV-TA-0000104 7465299 M3x0,5-6HX 6HX C DIN371 4.0 18.0 56.0 3.5 2.7
EV-TA-0000105 7465300 M3,5x0,6-6HX 6HX C DIN371 4.8 20.0 56.0 4.0 3
EV-TA-0000106 7465301 M4x0,7-6HX 6HX C DIN371 5.6 21.0 63.0 4.5 3.4
EV-TA-0000107 7465302 M4,5x0,75-6HX 6HX C DIN371 6.0 25.0 70.0 6.0 4.9000000000000004
EV-TA-0000108 7465303 M5x0,8-6HX 6HX C DIN371 6.4 25.0 70.0 6.0 4.9000000000000004
EV-TA-0000109 7465304 M6x1-6HX 6HX C DIN371 8.0 30.0 80.0 6.0 4.9000000000000004
EV-TA-0000110 7465305 M7x1-6HX 6HX C DIN371 8.0 30.0 80.0 7.0 5.5
EV-TA-0000111 7465306 M8x1,25-6HX 6HX C DIN371 10.0 35.0 90.0 8.0 6.2
EV-TA-0000112 7465307 M10x1,5-6HX 6HX C DIN371 12.0 39.0 100.0 10.0 8
EV-TA-0000113 7465308 M12x1,75-6HX 6HX C DIN376 14.0 — 110.0 9.0 7
EV-TA-0000114 7465309 M14x2-6HX 6HX C DIN376 16.0 — 110.0 11.0 9
EV-TA-0000115 7465310 M16x2-6HX 6HX C DIN376 16.0 — 110.0 12.0 9
EV-TA-0000116 7465311 M18x2,5-6HX 6HX C DIN376 25.0 — 125.0 14.0 11
EV-TA-0000117 7465312 M20x2,5-6HX 6HX C DIN376 25.0 — 140.0 16.0 12
EV-TA-0000118 7465313 M22x2,5-6HX 6HX C DIN376 25.0 — 140.0 18.0 14.5
EV-TA-0000119 7465314 M24x3-6HX 6HX C DIN376 30.0 — 160.0 18.0 14.5
EV-TA-0000120 7465315 M27x3-6HX 6HX C DIN376 36.0 — 160.0 20.0 16
EV-TA-0000121 7465316 M30x3,5-6HX 6HX C DIN376 42.0 — 180.0 22.0 18
EV-TA-0000122 7465317 M3x0,5-6HX 6HX C DIN376 4.0 — 56.0 2.2 —
EV-TA-0000123 7465318 M4x0,7-6HX 6HX C DIN376 5.6 — 63.0 2.8 2.1
EV-TA-0000124 7465319 M5x0,8-6HX 6HX C DIN376 6.4 — 70.0 3.5 2.7
EV-TA-0000125 7465320 M6x1-6HX 6HX C DIN376 8.0 — 80.0 4.5 3.4
EV-TA-0000126 7465321 M8x1,25-6HX 6HX C DIN376 10.0 — 90.0 6.0 4.9000000000000004
EV-TA-0000127 7465322 M10x1,5-6HX 6HX C DIN376 12.0 — 100.0 7.0 5.5
EV-TA-0000128 7465323 M2x0,4-6HX 6HX E DIN371 3.2 10.0 45.0 2.8 2.1
EV-TA-0000129 7465324 M3x0,5-6HX 6HX E DIN371 4.0 18.0 56.0 3.5 2.7
EV-TA-0000130 7465325 M4x0,7-6HX 6HX E DIN371 5.6 21.0 63.0 4.5 3.4
EV-TA-0000131 7465326 M5x0,8-6HX 6HX E DIN371 6.4 25.0 70.0 6.0 4.9000000000000004
EV-TA-0000132 7465327 M6x1-6HX 6HX E DIN371 8.0 30.0 80.0 6.0 4.9000000000000004
EV-TA-0000133 7465328 M8x1,25-6HX 6HX E DIN371 10.0 35.0 90.0 8.0 6.2
EV-TA-0000134 7465329 M10x1,5-6HX 6HX E DIN371 12.0 39.0 100.0 10.0 8
EV-TA-0000135 7465330 M12x1,75-6HX 6HX E DIN376 14.0 — 110.0 9.0 7
EV-TA-0000136 7465331 M14x2-6HX 6HX E DIN376 16.0 — 110.0 11.0 9
EV-TA-0000137 7465332 M16x2-6HX 6HX E DIN376 16.0 — 110.0 12.0 9
EV-TA-0000138 7465333 M20x2,5-6HX 6HX E DIN376 25.0 — 140.0 16.0 12
EV-TA-0000139 7465334 M24x3-6HX 6HX E DIN376 30.0 — 160.0 18.0 14.5
EV-TA-0000140 7465335 M2x0,4-6GX 6GX C DIN371 4.0 10.0 45.0 2.8 2.1
EV-TA-0000141 7465336 M3x0,5-6GX 6GX C DIN371 4.0 18.0 56.0 3.5 2.7
EV-TA-0000142 7465337 M4x0,7-6GX 6GX C DIN371 5.6 21.0 63.0 4.5 3.4
EV-TA-0000143 7465338 M5x0,8-6GX 6GX C DIN371 6.4 25.0 70.0 6.0 4.9000000000000004
EV-TA-0000144 7465339 M6x1-6GX 6GX C DIN371 8.0 30.0 80.0 6.0 4.9000000000000004
EV-TA-0000145 7465340 M8x1,25-6GX 6GX C DIN371 10.0 35.0 90.0 8.0 6.2
EV-TA-0000146 7465341 M10x1,5-6GX 6GX C DIN371 12.0 39.0 100.0 10.0 8
EV-TA-0000147 7465342 M12x1,75-6GX 6GX C DIN376 14.0 — 110.0 9.0 7
EV-TA-0000148 7465343 M14x2-6GX 6GX C DIN376 16.0 — 110.0 11.0 9
EV-TA-0000149 7465344 M16x2-6GX 6GX C DIN376 16.0 — 110.0 12.0 9
EV-TA-0000150 7465345 M20x2,5-6GX 6GX C DIN376 25.0 — 140.0 16.0 12
EV-TA-0000151 7465346 M24x3-6GX 6GX C DIN376 30.0 — 160.0 18.0 14.5
EV-TA-0000152 7465347 M2x0,4-7GX 7GX C DIN371 3.2 10.0 45.0 2.8 2.1
EV-TA-0000153 7465348 M3x0,5-7GX 7GX C DIN371 4.0 18.0 56.0 3.5 2.7
EV-TA-0000154 7465349 M4x0,7-7GX 7GX C DIN371 5.6 21.0 63.0 4.5 3.4
EV-TA-0000155 7465350 M5x0,8-7GX 7GX C DIN371 6.4 25.0 70.0 6.0 4.9000000000000004
EV-TA-0000156 7465351 M6x1-7GX 7GX C DIN371 8.0 30.0 80.0 6.0 4.9000000000000004
EV-TA-0000157 7465352 M8x1,25-7GX 7GX C DIN371 10.0 35.0 90.0 8.0 6.2
EV-TA-0000158 7465353 M10x1,5-7GX 7GX C DIN371 12.0 39.0 100.0 10.0 8
EV-TA-0000159 7465354 M12x1,75-7GX 7GX C DIN376 14.0 — 110.0 9.0 7
EV-TA-0000160 7465355 M16x2-7GX 7GX C DIN376 16.0 — 110.0 12.0 9
EV-TA-0000161 7465356 M3x0,5-6H+0.1 6H+0.1 C DIN371 4.0 18.0 56.0 3.5 2.7
EV-TA-0000162 7465357 M4x0,7-6H+0.1 6H+0.1 C DIN371 5.6 21.0 63.0 4.5 3.4
EV-TA-0000163 7465358 M5x0,8-6H+0.1 6H+0.1 C DIN371 6.4 25.0 70.0 6.0 4.9000000000000004
EV-TA-0000164 7465359 M6x1-6H+0.1 6H+0.1 C DIN371 8.0 30.0 80.0 6.0 4.9000000000000004
EV-TA-0000165 7465360 M8x1,25-6H+0.1 6H+0.1 C DIN371 10.0 35.0 90.0 8.0 6.2
EV-TA-0000166 7465361 M10x1,5-6H+0.1 6H+0.1 C DIN371 12.0 39.0 100.0 10.0 8
EV-TA-0000167 7465362 M12x1,75-6H+0.1 6H+0.1 C DIN376 14.0 — 110.0 9.0 7
EV-TA-0000168 7465363 M16x2-6H+0.1 6H+0.1 C DIN376 16.0 — 110.0 12.0 9
EV-TA-0000169 7465364 M3x0,5-6HX 6HX C DIN371 4.0 18.0 100.0 3.5 2.7
EV-TA-0000170 7465365 M4x0,7-6HX 6HX C DIN371 5.6 21.0 125.0 4.5 3.4
EV-TA-0000171 7465366 M5x0,8-6HX 6HX C DIN371 6.4 25.0 160.0 6.0 4.9000000000000004
EV-TA-0000172 7465367 M6x1-6HX 6HX C DIN371 8.0 30.0 160.0 6.0 4.9000000000000004
EV-TA-0000173 7465368 M8x1,25-6HX 6HX C DIN371 10.0 35.0 180.0 8.0 6.2
EV-TA-0000174 7465369 M10x1,5-6HX 6HX C DIN371 12.0 39.0 200.0 10.0 8
EV-TA-0000175 7465370 M12x1,75-6HX 6HX C DIN376 14.0 — 200.0 9.0 7
EV-TA-0000176 7465371 M14x2-6HX 6HX C DIN376 16.0 — 200.0 11.0 9
EV-TA-0000177 7465372 M16x2-6HX 6HX C DIN376 16.0 — 200.0 12.0 9
EV-TA-0000178 7465373 M20x2,5-6HX 6HX C DIN376 25.0 — 200.0 16.0 12
EV-TA-0000179 7465374 M4x0,7-6HX 6HX C DIN376 5.6 — 125.0 2.8 2.1
EV-TA-0000180 7465375 M5x0,8-6HX 6HX C DIN376 6.4 — 160.0 3.5 2.7
EV-TA-0000181 7465376 M6x1-6HX 6HX C DIN376 8.0 — 160.0 4.5 3.4
EV-TA-0000182 7465377 M8x1,25-6HX 6HX C DIN376 10.0 — 180.0 6.0 4.9000000000000004
EV-TA-0000183 7465378 M10x1,5-6HX 6HX C DIN376 12.0 — 200.0 7.0 5.5
EV-TA-0000423 7491485 M2x0,4-6H+0.1 6H+0.1 C DIN371 3.2 10.0 45.0 2.8 2.1
Please choose options to see the values.

Find det rigtige forboreværktøj

Drill EV SKU Manufacturer
Part
Number		 Ø(mm) L×D DOC(mm) ISO suitability Price Qty Add
Select a variant to see compatible pre-drills.

Anvendelse (find dine rigtige skæredata)

ISO Material Operation Ø Pre-Drill(mm) Coolant vc min(m/min) vc typ(m/min) vc max(m/min)
Start here: Please choose a variant.
