Beskrivelse

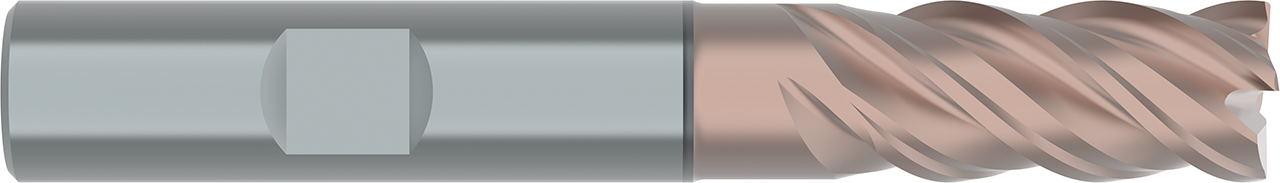

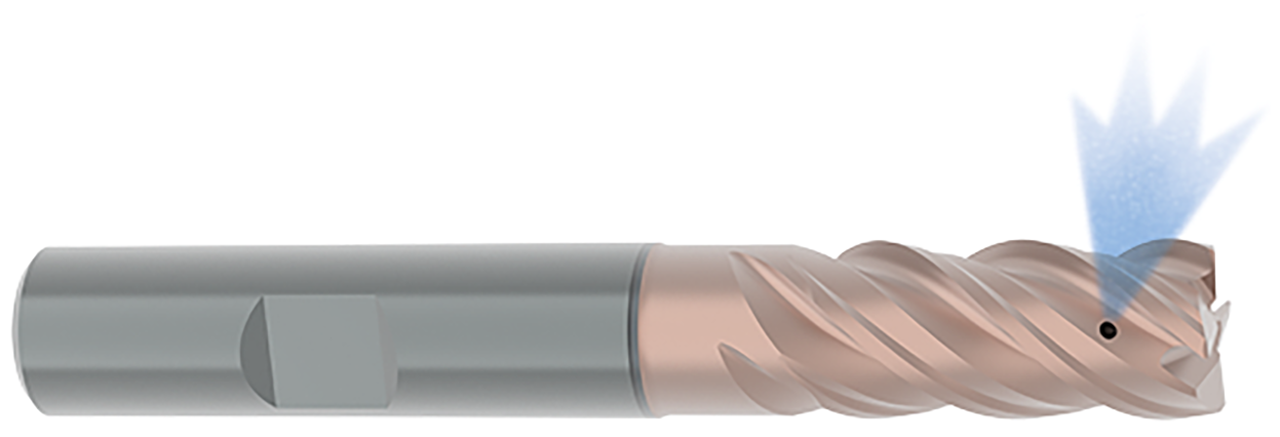

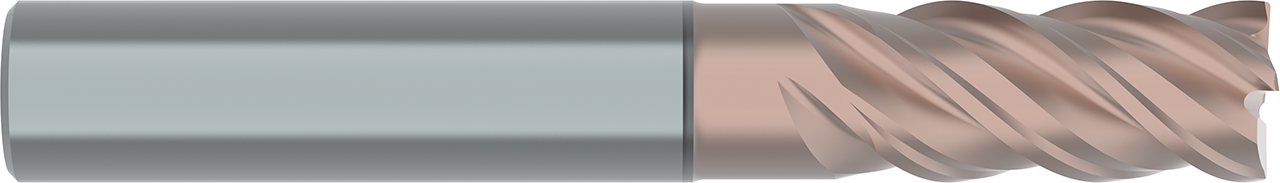

Produktmål (se produktbilleder for mål)
| EV SKU | Manufacturer Part Number |
A1(mm) | B2(mm) | B4(mm) | B5(mm) | C3(mm) | z | G1(mm) | G2(mm) | G3(mm) | G4(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-EM-0000195 | 7426783 | 10.0 | 11.0 | 24.0 | 66.0 | 10 | 4 | 0.3 | — | — | — |
| EV-EM-0000196 | 7426792 | 10.0 | 11.0 | 24.0 | 66.0 | 10 | 4 | 0.3 | — | — | — |
| EV-EM-0000197 | 7426800 | 10.0 | 22.0 | 32.0 | 72.0 | 10 | 4 | 0.3 | — | — | — |
| EV-EM-0000198 | 7426809 | 10.0 | 22.0 | 32.0 | 72.0 | 10 | 4 | 0.3 | — | — | — |
| EV-EM-0000199 | 7426815 | 10.0 | 22.0 | 32.0 | 72.0 | 10 | 4 | 0.3 | — | — | — |
| EV-EM-0000200 | 7426784 | 12.0 | 12.0 | 26.0 | 73.0 | 12 | 4 | 0.3 | — | — | — |
| EV-EM-0000201 | 7426793 | 12.0 | 12.0 | 26.0 | 73.0 | 12 | 4 | 0.3 | — | — | — |
| EV-EM-0000202 | 7426801 | 12.0 | 26.0 | 38.0 | 83.0 | 12 | 4 | 0.3 | — | — | — |
| EV-EM-0000203 | 7426810 | 12.0 | 26.0 | 38.0 | 83.0 | 12 | 4 | 0.3 | — | — | — |
| EV-EM-0000204 | 7426816 | 12.0 | 26.0 | 38.0 | 83.0 | 12 | 4 | 0.3 | — | — | — |
| EV-EM-0000205 | 7426785 | 14.0 | 14.0 | 28.0 | 75.0 | 14 | 4 | 0.4 | — | — | — |
| EV-EM-0000206 | 7432295 | 14.0 | 14.0 | 28.0 | 75.0 | 14 | 4 | 0.4 | — | — | — |
| EV-EM-0000207 | 7426802 | 14.0 | 26.0 | 38.0 | 83.0 | 14 | 4 | 0.4 | — | — | — |
| EV-EM-0000208 | 7432298 | 14.0 | 26.0 | 38.0 | 83.0 | 14 | 4 | 0.4 | — | — | — |
| EV-EM-0000209 | 7426786 | 16.0 | 16.0 | 32.0 | 82.0 | 16 | 4 | 0.4 | — | — | — |
| EV-EM-0000210 | 7426794 | 16.0 | 16.0 | 32.0 | 82.0 | 16 | 4 | 0.4 | — | — | — |
| EV-EM-0000211 | 7426803 | 16.0 | 32.0 | 44.0 | 92.0 | 16 | 4 | 0.4 | — | — | — |
| EV-EM-0000212 | 7426811 | 16.0 | 32.0 | 44.0 | 92.0 | 16 | 4 | 0.4 | — | — | — |
| EV-EM-0000213 | 7426817 | 16.0 | 32.0 | 44.0 | 92.0 | 16 | 4 | 0.4 | — | — | — |
| EV-EM-0000214 | 7432294 | 18.0 | 18.0 | 34.0 | 84.0 | 18 | 4 | 0.4 | — | — | — |
| EV-EM-0000215 | 7432296 | 18.0 | 18.0 | 34.0 | 84.0 | 18 | 4 | 0.4 | — | — | — |
| EV-EM-0000216 | 7432297 | 18.0 | 32.0 | 44.0 | 92.0 | 18 | 4 | 0.4 | — | — | — |
| EV-EM-0000217 | 7432299 | 18.0 | 32.0 | 44.0 | 92.0 | 18 | 4 | 0.4 | — | — | — |
| EV-EM-0000218 | 7426787 | 20.0 | 20.0 | 40.0 | 92.0 | 20 | 4 | 0.4 | — | — | — |
| EV-EM-0000219 | 7426795 | 20.0 | 20.0 | 40.0 | 92.0 | 20 | 4 | 0.4 | — | — | — |
| EV-EM-0000220 | 7426804 | 20.0 | 38.0 | 54.0 | 104.0 | 20 | 4 | 0.5 | — | — | — |
| EV-EM-0000221 | 7426812 | 20.0 | 38.0 | 54.0 | 104.0 | 20 | 4 | 0.4 | — | — | — |
| EV-EM-0000222 | 7426818 | 20.0 | 38.0 | 54.0 | 104.0 | 20 | 4 | 0.4 | — | — | — |
| EV-EM-0000223 | 7426779 | 4.0 | 5.0 | 8.0 | 54.0 | 6 | 4 | 0.15 | — | — | — |
| EV-EM-0000224 | 7426788 | 4.0 | 5.0 | 8.0 | 54.0 | 6 | 4 | 0.15 | — | — | — |
| EV-EM-0000225 | 7426796 | 4.0 | 8.0 | 12.0 | 54.0 | 6 | 4 | 0.15 | — | — | — |
| EV-EM-0000226 | 7426805 | 4.0 | 8.0 | 12.0 | 54.0 | 6 | 4 | 0.15 | — | — | — |
| EV-EM-0000227 | 7426797 | 5.0 | 10.0 | 15.0 | 54.0 | 6 | 4 | 0.2 | — | — | — |
| EV-EM-0000228 | 7426806 | 5.0 | 10.0 | 15.0 | 54.0 | 6 | 4 | 0.2 | — | — | — |
| EV-EM-0000229 | 7426780 | 5.0 | 6.0 | 10.0 | 54.0 | 6 | 4 | 0.2 | — | — | — |
| EV-EM-0000230 | 7426789 | 5.0 | 6.0 | 10.0 | 54.0 | 6 | 4 | 0.2 | — | — | — |
| EV-EM-0000231 | 7426798 | 6.0 | 13.0 | 21.0 | 57.0 | 6 | 4 | 0.3 | — | — | — |
| EV-EM-0000232 | 7426807 | 6.0 | 13.0 | 21.0 | 57.0 | 6 | 4 | 0.2 | — | — | — |
| EV-EM-0000233 | 7426813 | 6.0 | 13.0 | 21.0 | 57.0 | 6 | 4 | 0.3 | — | — | — |
| EV-EM-0000234 | 7426781 | 6.0 | 7.0 | 16.0 | 54.0 | 6 | 4 | 0.3 | — | — | — |
| EV-EM-0000235 | 7426790 | 6.0 | 7.0 | 16.0 | 54.0 | 6 | 4 | 0.3 | — | — | — |
| EV-EM-0000236 | 7426799 | 8.0 | 19.0 | 27.0 | 63.0 | 8 | 4 | 0.3 | — | — | — |
| EV-EM-0000237 | 7426808 | 8.0 | 19.0 | 27.0 | 63.0 | 8 | 4 | 0.3 | — | — | — |
| EV-EM-0000238 | 7426814 | 8.0 | 19.0 | 27.0 | 63.0 | 8 | 4 | 0.3 | — | — | — |
| EV-EM-0000239 | 7426782 | 8.0 | 9.0 | 20.0 | 58.0 | 8 | 4 | 0.3 | — | — | — |
| EV-EM-0000240 | 7426791 | 8.0 | 9.0 | 20.0 | 58.0 | 8 | 4 | 0.3 | — | — | — |
| Please choose options to see the values. | |||||||||||
Anvendelse (find dine rigtige skæredata)
| ISO | Material | Operation | Stage | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Ramp max(°) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Start here: Please choose a variant. | |||||||||||||||
