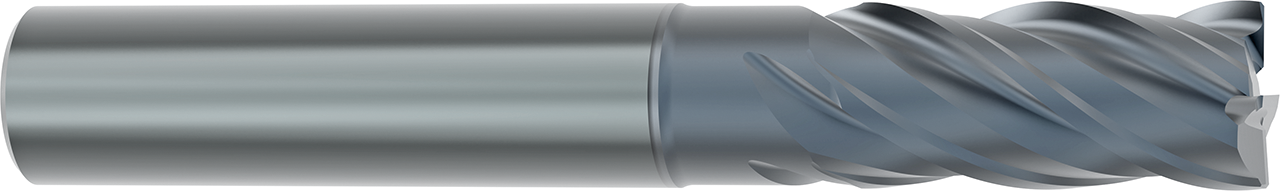

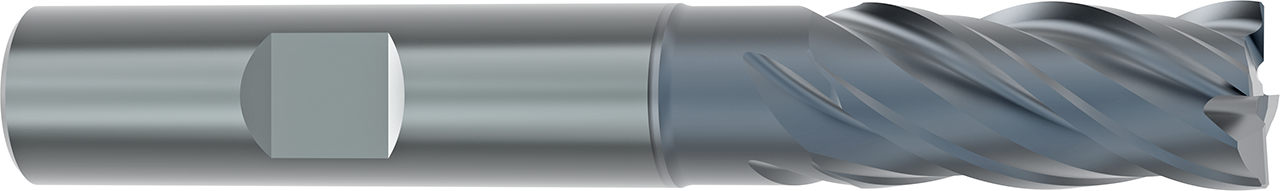

Beskrivelse
Produktmål (se produktbilleder for mål)
| EV SKU | Manufacturer Part Number |
A1(mm) | B2(mm) | B4(mm) | B5(mm) | C3(mm) | z | G1(mm) | G2(mm) | G3(mm) | G4(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-EM-0000241 | 7426037 | 1.0 | 1.5 | 1.5 | 40.0 | 4 | 4 | — | 0.025 | 45 | — |
| EV-EM-0000242 | 7426050 | 1.0 | 2.5 | 2.5 | 40.0 | 4 | 4 | — | 0.025 | 45 | — |
| EV-EM-0000243 | 7426073 | 10.0 | 11.0 | 11.0 | 66.0 | 10 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000244 | 7426044 | 10.0 | 11.0 | 11.0 | 66.0 | 10 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000245 | 7426091 | 10.0 | 15.0 | 15.0 | 80.0 | 10 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000246 | 7426065 | 10.0 | 15.0 | 15.0 | 80.0 | 10 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000247 | 7426083 | 10.0 | 22.0 | 22.0 | 72.0 | 10 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000248 | 7426057 | 10.0 | 22.0 | 22.0 | 72.0 | 10 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000249 | 7426074 | 12.0 | 12.0 | 12.0 | 73.0 | 12 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000250 | 7426045 | 12.0 | 12.0 | 12.0 | 73.0 | 12 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000251 | 7426092 | 12.0 | 18.0 | 18.0 | 93.0 | 12 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000252 | 7426066 | 12.0 | 18.0 | 18.0 | 93.0 | 12 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000253 | 7426084 | 12.0 | 26.0 | 26.0 | 83.0 | 12 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000254 | 7426058 | 12.0 | 26.0 | 26.0 | 83.0 | 12 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000255 | 7426075 | 14.0 | 14.0 | 14.0 | 75.0 | 14 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000256 | 7426046 | 14.0 | 14.0 | 14.0 | 75.0 | 14 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000257 | 7426085 | 14.0 | 26.0 | 26.0 | 83.0 | 14 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000258 | 7426059 | 14.0 | 26.0 | 26.0 | 83.0 | 14 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000259 | 7426076 | 16.0 | 16.0 | 16.0 | 82.0 | 16 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000260 | 7426047 | 16.0 | 16.0 | 16.0 | 82.0 | 16 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000261 | 7426093 | 16.0 | 24.0 | 24.0 | 108.0 | 16 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000262 | 7426067 | 16.0 | 24.0 | 24.0 | 108.0 | 16 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000263 | 7426086 | 16.0 | 32.0 | 32.0 | 92.0 | 16 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000264 | 7426060 | 16.0 | 32.0 | 32.0 | 92.0 | 16 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000265 | 7426077 | 18.0 | 18.0 | 18.0 | 84.0 | 18 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000266 | 7426048 | 18.0 | 18.0 | 18.0 | 84.0 | 18 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000267 | 7426087 | 18.0 | 32.0 | 32.0 | 92.0 | 18 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000268 | 7426061 | 18.0 | 32.0 | 32.0 | 92.0 | 18 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000269 | 7426038 | 2.0 | 3.0 | 3.0 | 40.0 | 4 | 4 | — | 0.05 | 45 | — |
| EV-EM-0000270 | 7426051 | 2.0 | 4.0 | 4.0 | 40.0 | 4 | 4 | — | 0.05 | 45 | — |
| EV-EM-0000271 | 7426078 | 20.0 | 20.0 | 20.0 | 92.0 | 20 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000272 | 7426049 | 20.0 | 20.0 | 20.0 | 92.0 | 20 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000273 | 7426094 | 20.0 | 30.0 | 30.0 | 126.0 | 20 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000274 | 7426068 | 20.0 | 30.0 | 30.0 | 126.0 | 20 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000275 | 7426088 | 20.0 | 38.0 | 38.0 | 104.0 | 20 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000276 | 7426062 | 20.0 | 38.0 | 38.0 | 104.0 | 20 | 4 | — | 0.3 | 45 | — |
| EV-EM-0000277 | 7426039 | 3.0 | 4.0 | 4.0 | 40.0 | 4 | 4 | — | 0.075 | 45 | — |
| EV-EM-0000278 | 7426052 | 3.0 | 6.0 | 6.0 | 40.0 | 4 | 4 | — | 0.075 | 45 | — |
| EV-EM-0000279 | 7426069 | 4.0 | 5.0 | 5.0 | 54.0 | 6 | 4 | — | 0.1 | 45 | — |
| EV-EM-0000280 | 7426040 | 4.0 | 5.0 | 5.0 | 54.0 | 6 | 4 | — | 0.1 | 45 | — |
| EV-EM-0000281 | 7426079 | 4.0 | 8.0 | 8.0 | 54.0 | 6 | 4 | — | 0.1 | 45 | — |
| EV-EM-0000282 | 7426053 | 4.0 | 8.0 | 8.0 | 54.0 | 6 | 4 | — | 0.1 | 45 | — |
| EV-EM-0000283 | 7426080 | 5.0 | 10.0 | 10.0 | 54.0 | 6 | 4 | — | 0.15 | 45 | — |
| EV-EM-0000284 | 7426054 | 5.0 | 10.0 | 10.0 | 54.0 | 6 | 4 | — | 0.15 | 45 | — |
| EV-EM-0000285 | 7426070 | 5.0 | 6.0 | 6.0 | 54.0 | 6 | 4 | — | 0.15 | 45 | — |
| EV-EM-0000286 | 7426041 | 5.0 | 6.0 | 6.0 | 54.0 | 6 | 4 | — | 0.15 | 45 | — |
| EV-EM-0000287 | 7426081 | 6.0 | 13.0 | 13.0 | 57.0 | 6 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000288 | 7426055 | 6.0 | 13.0 | 13.0 | 57.0 | 6 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000289 | 7426071 | 6.0 | 7.0 | 7.0 | 54.0 | 6 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000290 | 7426042 | 6.0 | 7.0 | 7.0 | 54.0 | 6 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000291 | 7426089 | 6.0 | 9.0 | 9.0 | 65.0 | 6 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000292 | 7426063 | 6.0 | 9.0 | 9.0 | 65.0 | 6 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000293 | 7426090 | 8.0 | 12.0 | 12.0 | 75.0 | 8 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000294 | 7426064 | 8.0 | 12.0 | 12.0 | 75.0 | 8 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000295 | 7426082 | 8.0 | 19.0 | 19.0 | 63.0 | 8 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000296 | 7426056 | 8.0 | 19.0 | 19.0 | 63.0 | 8 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000297 | 7426072 | 8.0 | 9.0 | 9.0 | 58.0 | 8 | 4 | — | 0.2 | 45 | — |
| EV-EM-0000298 | 7426043 | 8.0 | 9.0 | 9.0 | 58.0 | 8 | 4 | — | 0.2 | 45 | — |
| Please choose options to see the values. | |||||||||||
Anvendelse (find dine rigtige skæredata)
| ISO | Material | Operation | Stage | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Ramp max(°) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Start here: Please choose a variant. | |||||||||||||||
