Beskrivelse

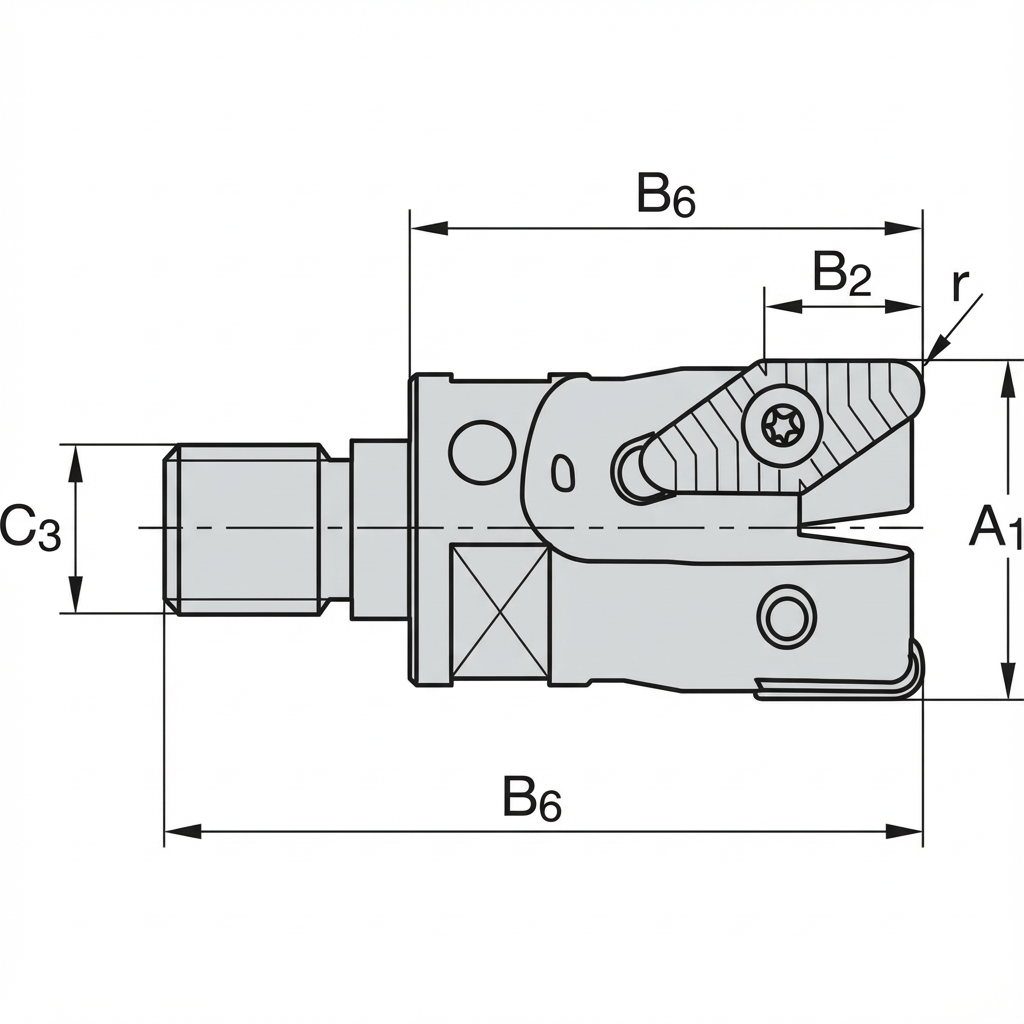

Produktmål (se produktbilleder for mål)
| EV SKU | Manufacturer Part Number |
A1(mm) | G4(mm) | B5(mm) | C3(mm) | B2(mm) | B11(mm) | B6(mm) | A3(mm) | A4(mm) | A2(mm) | z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-MB-0000434 | 1043246 | 20.0 | — | 49.0 | M10 | 10.0 | — | 18.5 | 19.32 | — | — | 2 |
| EV-MB-0000435 | 1043247 | 25.0 | — | 62.0 | M12 | 13.5 | — | 22.5 | 23.7 | — | — | 2 |
| EV-MB-0000436 | 1043248 | 32.0 | — | 74.0 | M16 | 15.0 | — | 26.0 | 31.0 | — | — | 2 |
| EV-MB-0000437 | 1043249 | 42.0 | — | 74.0 | M16 | 15.0 | — | 27.0 | 40.4 | — | — | 3 |
| Please choose options to see the values. | ||||||||||||
Kompatible skær
| Insert EV SKU | Insert MPN | Insert | Grade | Corner Radius(mm) | ISO suitability | Price | Qty | Add | |
|---|---|---|---|---|---|---|---|---|---|
| Select a Body variant to see compatible inserts. | |||||||||
Anvendelse (find dine rigtige skæredata)
| ISO | Material | Operation | Stage | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Ramp max(°) |
|---|
Kompatible patroner
Table of Chucks that go along with Mill
