Beskrivelse

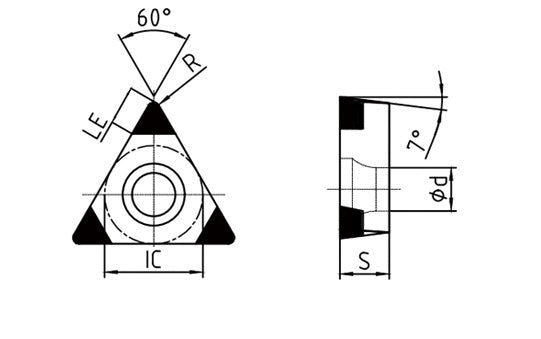

Dimensioner for drejeskær
| EdgeVend Artikelnummer | Producent Del Nummer |
Billede | Indskrevet cirkel IC(mm) | Tykkelse S(mm) | Hjørneradius R(mm) | Spændehul(mm) | Antal skærkanter |
|---|---|---|---|---|---|---|---|
| EV-TI-0000251 | MN00815 |
|
9.525 | 2.38 | 0.2 | 2.4 | 3 |
| EV-TI-0000252 | MN00748 |
|
9.525 | 2.38 | 0.2 | 2.4 | 3 |
| EV-TI-0000253 | MN00587 |
|
9.525 | 2.38 | 0.4 | 2.4 | 3 |
| EV-TI-0000254 | MN00588 |
|
9.525 | 2.38 | 0.4 | 2.4 | 3 |
| EV-TI-0000255 | MN00589 |
|
9.525 | 2.38 | 0.4 | 2.4 | 3 |
| EV-TI-0000256 | MN00207 |
|
9.525 | 2.38 | 0.4 | 2.4 | 3 |
| EV-TI-0000257 | MN00208 |
|
9.525 | 2.38 | 0.4 | 2.4 | 3 |
| EV-TI-0000258 | MN00209 |
|
9.525 | 2.38 | 0.4 | 2.4 | 3 |
| EV-TI-0000259 | MN00590 |
|
9.525 | 2.38 | 0.8 | 2.4 | 3 |
| EV-TI-0000260 | MN00591 |
|
9.525 | 2.38 | 0.8 | 2.4 | 3 |
| EV-TI-0000261 | MN00592 |
|
9.525 | 2.38 | 0.8 | 2.4 | 3 |
| EV-TI-0000262 | MN00213 |
|
9.525 | 2.38 | 0.8 | 2.4 | 3 |
| EV-TI-0000263 | MN00214 |
|
9.525 | 2.38 | 0.8 | 2.4 | 3 |
| EV-TI-0000264 | MN00215 |
|
9.525 | 2.38 | 0.8 | 2.4 | 3 |
| EV-TI-0000265 | MN00749 |
|
9.525 | 2.38 | 0.8 | 2.4 | 3 |
| EV-TI-0000266 | MN00552 |
|
6.35 | 2.38 | 0.4 | 2.8 | 3 |
| EV-TI-0000267 | MN00593 |
|
6.35 | 2.38 | 0.4 | 2.8 | 3 |
| EV-TI-0000268 | MN00594 |
|
6.35 | 2.38 | 0.4 | 2.8 | 3 |
| EV-TI-0000269 | MN00219 |
|
6.35 | 2.38 | 0.4 | 2.8 | 3 |
| EV-TI-0000270 | MN00220 |
|
6.35 | 2.38 | 0.4 | 2.8 | 3 |
| EV-TI-0000271 | MN00221 |
|
6.35 | 2.38 | 0.4 | 2.8 | 3 |
| EV-TI-0000272 | MN00750 |
|
6.35 | 2.38 | 0.4 | 2.8 | 3 |
| EV-TI-0000273 | MN00526 |
|
6.35 | 2.38 | 0.8 | 2.8 | 3 |
| EV-TI-0000274 | MN00595 |
|
6.35 | 2.38 | 0.8 | 2.8 | 3 |
| EV-TI-0000275 | MN00596 |
|
6.35 | 2.38 | 0.8 | 2.8 | 3 |
| EV-TI-0000276 | MN00225 |
|
6.35 | 2.38 | 0.8 | 2.8 | 3 |
| EV-TI-0000277 | MN00226 |
|
6.35 | 2.38 | 0.8 | 2.8 | 3 |
| EV-TI-0000278 | MN00227 |
|
6.35 | 2.38 | 0.8 | 2.8 | 3 |
| EV-TI-0000279 | MN00751 |
|
6.35 | 2.38 | 0.8 | 2.8 | 3 |
| EV-TI-0000280 | MN00597 |
|
6.35 | 3.18 | 0.4 | 2.8 | 3 |
| EV-TI-0000281 | MN00598 |
|
6.35 | 3.18 | 0.4 | 2.8 | 3 |
| EV-TI-0000282 | MN00599 |
|
6.35 | 3.18 | 0.4 | 2.8 | 3 |
| EV-TI-0000283 | MN00231 |
|
6.35 | 3.18 | 0.4 | 2.8 | 3 |
| EV-TI-0000284 | MN00232 |
|
6.35 | 3.18 | 0.4 | 2.8 | 3 |
| EV-TI-0000285 | MN00233 |
|
6.35 | 3.18 | 0.4 | 2.8 | 3 |
| EV-TI-0000286 | MN00752 |
|
6.35 | 3.18 | 0.4 | 2.8 | 3 |
| EV-TI-0000287 | MN00600 |
|
6.35 | 3.18 | 0.8 | 2.8 | 3 |
| EV-TI-0000288 | MN00601 |
|
6.35 | 3.18 | 0.8 | 2.8 | 3 |
| EV-TI-0000289 | MN00534 |
|
6.35 | 3.18 | 0.8 | 2.8 | 3 |
| EV-TI-0000290 | MN00237 |
|
6.35 | 3.18 | 0.8 | 2.8 | 3 |
| EV-TI-0000291 | MN00238 |
|
6.35 | 3.18 | 0.8 | 2.8 | 3 |
| EV-TI-0000292 | MN00239 |
|
6.35 | 3.18 | 0.8 | 2.8 | 3 |
| EV-TI-0000293 | MN00753 |
|
6.35 | 3.18 | 0.8 | 2.8 | 3 |
| EV-TI-0000294 | MN00816 |
|
9.525 | 3.97 | 0.4 | 4.4 | 3 |
| Vælg indstillinger for at se værdier. | |||||||
Skæredata til drejning
| ISO | Materiale | Bearbejdning | Afbrudt snit | Bearbejdningstrin | Kølemiddel | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fn min(mm/rev) | fn typ(mm/rev) | fn max(mm/rev) | ap min(mm) | ap typ(mm) | ap max(mm) |
|---|
