Beskrivelse

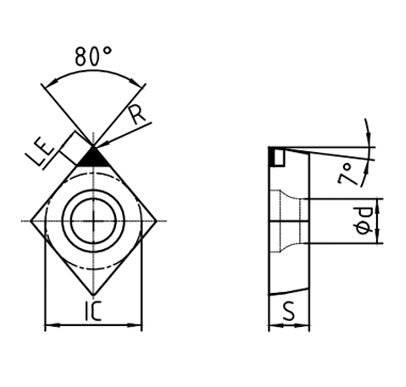

Dimensioner for drejeskær
| EdgeVend Artikelnummer | Producent Del Nummer |
Billede | Indskrevet cirkel IC(mm) | Tykkelse S(mm) | Hjørneradius R(mm) | Spændehul(mm) | Antal skærkanter |
|---|---|---|---|---|---|---|---|
| EV-TI-0000009 | MN00005 |
|
6.35 | 2.38 | 0.2 | 2.8 | 1 |
| EV-TI-0000010 | MN00007 |
|
6.35 | 2.38 | 0.4 | 2.8 | 1 |
| EV-TI-0000011 | MN00660 |
|
6.35 | 2.38 | 0.5 | 2.8 | 1 |
| EV-TI-0000012 | MN00496 |
|
6.35 | 2.38 | 0.8 | 2.8 | 1 |
| EV-TI-0000013 | MN00009 |
|
9.525 | 3.97 | 0.2 | 4.4 | 1 |
| EV-TI-0000014 | MN00010 |
|
9.525 | 3.97 | 0.4 | 4.4 | 1 |
| EV-TI-0000015 | MN00839 |
|
9.525 | 3.97 | 0.4 | 4.4 | 1 |
| EV-TI-0000016 | MN00011 |
|
9.525 | 3.97 | 0.8 | 4.4 | 1 |
| EV-TI-0000017 | MN00840 |
|
9.525 | 3.97 | 0.8 | 4.4 | 1 |
| EV-TI-0000018 | MN00662 |
|
12.7 | 4.76 | 0.4 | 5.5 | 1 |
| EV-TI-0000019 | MN00663 |
|
12.7 | 4.76 | 0.8 | 5.5 | 1 |
| Vælg indstillinger for at se værdier. | |||||||
Skæredata til drejning
| ISO | Materiale | Bearbejdning | Afbrudt snit | Bearbejdningstrin | Kølemiddel | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fn min(mm/rev) | fn typ(mm/rev) | fn max(mm/rev) | ap min(mm) | ap typ(mm) | ap max(mm) |
|---|
