Beskrivelse

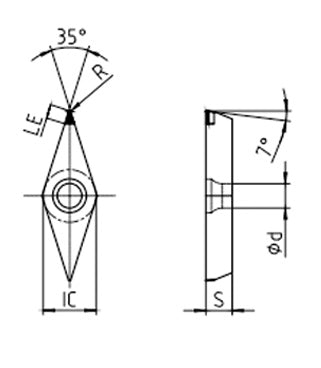

Produktmål
| EV SKU | Manufacturer Part Number |
Image | IC(mm) | S(mm) | R(mm) | Ød(mm) | Index count |
|---|---|---|---|---|---|---|---|
| EV-TI-0000073 | MN00512 |
|
6.35 | 2.38 | 0.4 | 2.8 | 1 |
| EV-TI-0000074 | MN00027 |
|
6.35 | 3.18 | 0.2 | 2.8 | 1 |
| EV-TI-0000075 | MN00028 |
|
6.35 | 3.18 | 0.4 | 2.8 | 1 |
| EV-TI-0000076 | MN00029 |
|
9.525 | 4.76 | 0.2 | 4.4 | 1 |
| EV-TI-0000077 | MN00836 |
|
9.525 | 4.76 | 0.2 | 4.4 | 1 |
| EV-TI-0000078 | MN00030 |
|
9.525 | 4.76 | 0.4 | 4.4 | 1 |
| EV-TI-0000079 | MN00837 |
|
9.525 | 4.76 | 0.4 | 4.4 | 1 |
| EV-TI-0000080 | MN00031 |
|
9.525 | 4.76 | 0.8 | 4.4 | 1 |
| EV-TI-0000081 | MN00838 |
|
9.525 | 4.76 | 0.8 | 4.4 | 1 |
| Please choose options to see the values. | |||||||
Anvendelse (find dine rigtige skæredata)
| ISO | Material | Operation | Interruption | Stage | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fn min(mm/rev) | fn typ(mm/rev) | fn max(mm/rev) | ap min(mm) | ap typ(mm) | ap max(mm) |
|---|
