Beskrivelse

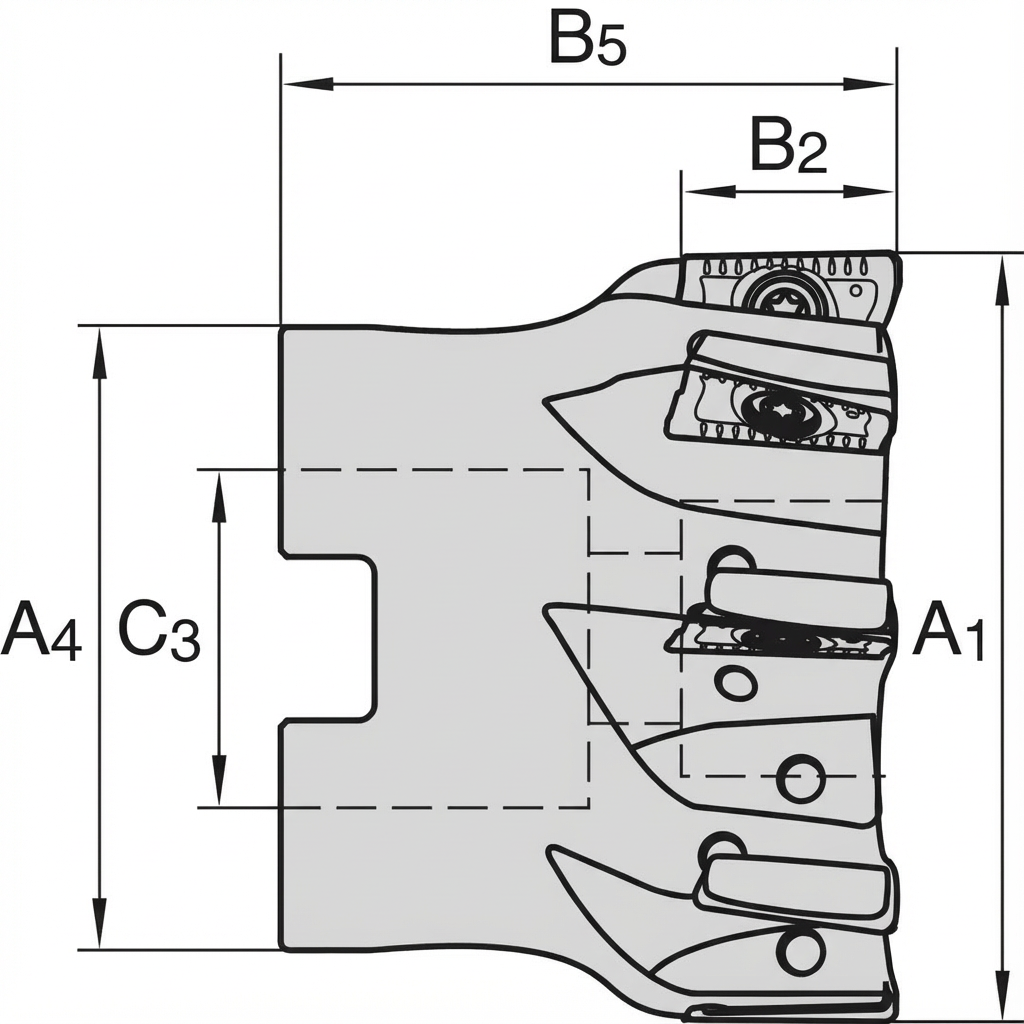

Måltabell
| EdgeVend Artikkelnummer | Produsentens delenummer | Skjærediameter A1(mm) | Teoretisk / Profilradius G4(mm) | Total lengde B5(mm) | Tilkoblingsstørrelse C3(mm) | Maks. skjæredybde B2(mm) | Skjærebredde B11(mm) | Brukbar lengde B6(mm) | Kroppdiameter A3(mm) | Navdiameter A4(mm) | Skjærediameter 2 A2(mm) | Antall tenner z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-MB-0000031 | 7249851 | 40.0 | — | 40.0 | SMC16 | 8.5 | — | 13.0 | 38.8 | 32.0 | — | 6 |
| EV-MB-0000032 | 1045035 | 40.0 | — | 40.0 | SMC16 | 16.5 | — | 12.0 | 38.7 | 32.0 | — | 4 |
| EV-MB-0000033 | 7249850 | 40.0 | — | 40.0 | SMC16 | 8.5 | — | 13.0 | 38.8 | 32.0 | — | 4 |
| EV-MB-0000034 | 1045100 | 40.0 | — | 40.0 | SMC16 | 12.0 | — | 13.0 | 38.3 | 32.0 | — | 4 |
| EV-MB-0000035 | 1045101 | 40.0 | — | 40.0 | SMC16 | 12.0 | — | 13.0 | 38.3 | 32.0 | — | 6 |
| EV-MB-0000036 | 7249852 | 50.0 | — | 40.0 | SMC22 | 8.5 | — | 13.0 | 48.7 | 40.0 | — | 5 |
| EV-MB-0000037 | 7249853 | 50.0 | — | 40.0 | SMC22 | 8.5 | — | 13.0 | 48.7 | 40.0 | — | 7 |
| EV-MB-0000038 | 1045103 | 50.0 | — | 40.0 | SMC22 | 12.0 | — | 13.0 | 48.1 | 40.0 | — | 7 |
| EV-MB-0000039 | 1045102 | 50.0 | — | 40.0 | SMC22 | 12.0 | — | 13.0 | 48.1 | 40.0 | — | 5 |
| EV-MB-0000040 | 7266631 | 50.0 | — | 40.0 | SMC22 | 16.5 | — | 13.0 | 48.5 | 40.0 | — | 4 |
| EV-MB-0000041 | 1045036 | 50.0 | — | 40.0 | SMC22 | 16.5 | — | 13.0 | 48.7 | 40.0 | — | 5 |
| EV-MB-0000042 | 7266632 | 63.0 | — | 40.0 | SMC22 | 16.5 | — | 13.0 | 61.2 | 50.0 | — | 5 |
| EV-MB-0000043 | 7249854 | 63.0 | — | 40.0 | SMC22 | 8.5 | — | 13.0 | 61.4 | 50.0 | — | 6 |
| EV-MB-0000044 | 1045106 | 63.0 | — | 40.0 | SMC22 | 12.0 | — | 13.0 | 60.9 | 40.0 | — | 9 |
| EV-MB-0000045 | 1045037 | 63.0 | — | 40.0 | SMC22 | 16.5 | — | 13.0 | 61.2 | 50.0 | — | 6 |
| EV-MB-0000046 | 7249855 | 63.0 | — | 40.0 | SMC22 | 8.5 | — | 13.0 | 61.4 | 50.0 | — | 9 |
| EV-MB-0000047 | 1045104 | 63.0 | — | 40.0 | SMC22 | 12.0 | — | 13.0 | 60.9 | 50.0 | — | 6 |
| EV-MB-0000048 | 1045038 | 80.0 | — | 50.0 | SMC27 | 16.5 | — | 17.0 | 78.2 | 60.0 | — | 8 |
| EV-MB-0000049 | 7266633 | 80.0 | — | 50.0 | SMC27 | 16.5 | — | 17.0 | 78.2 | 50.0 | — | 6 |
| EV-MB-0000050 | 1045039 | 100.0 | — | 50.0 | SMC32 | 16.5 | — | 17.0 | 97.5 | 75.0 | — | 9 |
| EV-MB-0000051 | 7266634 | 100.0 | — | 50.0 | SMC32 | 16.5 | — | 17.0 | 97.5 | 50.0 | — | 7 |
| EV-MB-0000052 | 7249857 | 125.0 | — | 63.0 | SMC40 | 16.5 | — | 24.0 | 122.4 | 90.0 | — | 11 |
| EV-MB-0000053 | 7249856 | 125.0 | — | 63.0 | SMC40 | 16.5 | — | 24.0 | 122.4 | 90.0 | — | 9 |
| Velg alternativer for å se verdiene. | ||||||||||||
Kompatible skjær
| Skjær EdgeVend Artikkelnummer | Skjær Produsentens delenummer | Skjær | Kvalitet | Hjørneradius(mm) | ISO-egnethet | Pris | Antall | Legg direkte i handlekurv | |
|---|---|---|---|---|---|---|---|---|---|
| Velg en kroppsvariant for å se kompatible skjær. | |||||||||
| ISO | Materiale | Operasjon | Bearbeidingstrinn | Kjølemiddel | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Maks. ramping(°) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Start her: Velg de tre alternativene for å laste anbefalinger. | |||||||||||||||
Kompatible chucker
Table of Chucks that go along with Mill
