Description
Dimension Table
| EdgeVend Article Number |
Manufacturer Part Number |

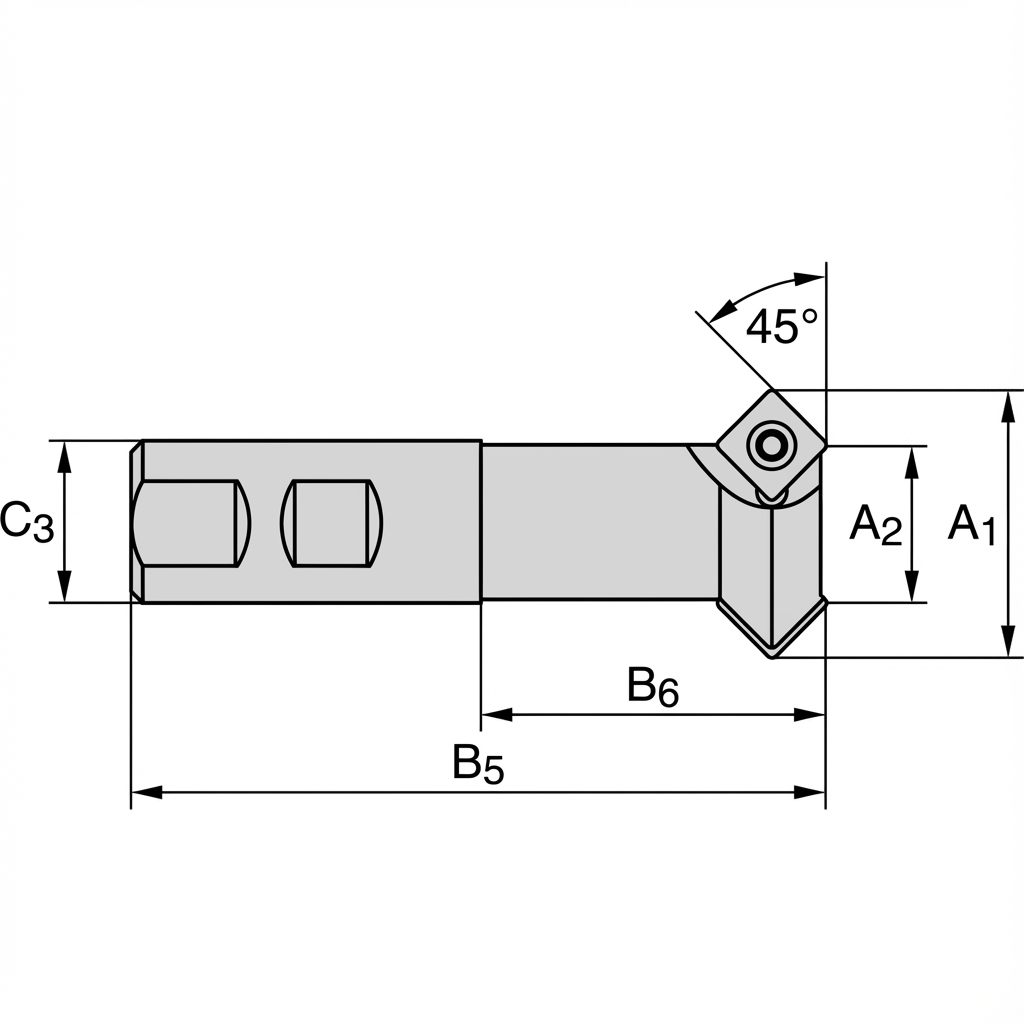

Cutting Diameter A1(mm) |
Theoretical / Profile radius G4(mm) | Overall Length B5(mm) |
Connection Size C3(mm) |
Max Depth of Cut B2(mm) |
Cutting Width B11(mm) |
Usable Length B6(mm) |
Body Diameter A3(mm) |
Hub Diameter A4(mm) |
Cutting Diameter 2 A2(mm) |
Number of Teeth z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-MB-0000121 | 1043604 | 16.0 | — | 85.0 | 16 | 6.0 | — | 37.0 | 27.4 | — | 28.8 | 2 |
| EV-MB-0000122 | 1043606 | 20.0 | — | 95.0 | 20 | 8.0 | — | 45.0 | 35.9 | — | 37.1 | 2 |
| EV-MB-0000123 | 1043608 | 25.0 | — | 110.0 | 25 | 8.0 | — | 54.0 | 40.3 | — | 42.3 | 2 |
| EV-MB-0000124 | 1043610 | 32.0 | — | 125.0 | 32 | 8.0 | — | 65.0 | 47.6 | — | 49.3 | 3 |
| EV-MB-0000125 | 1043553 | 18.0 | — | 199.0 | 25 | 8.0 | — | 143.0 | 33.7 | — | 36.0 | 2 |
| Please choose options to see the values. | ||||||||||||
