Description

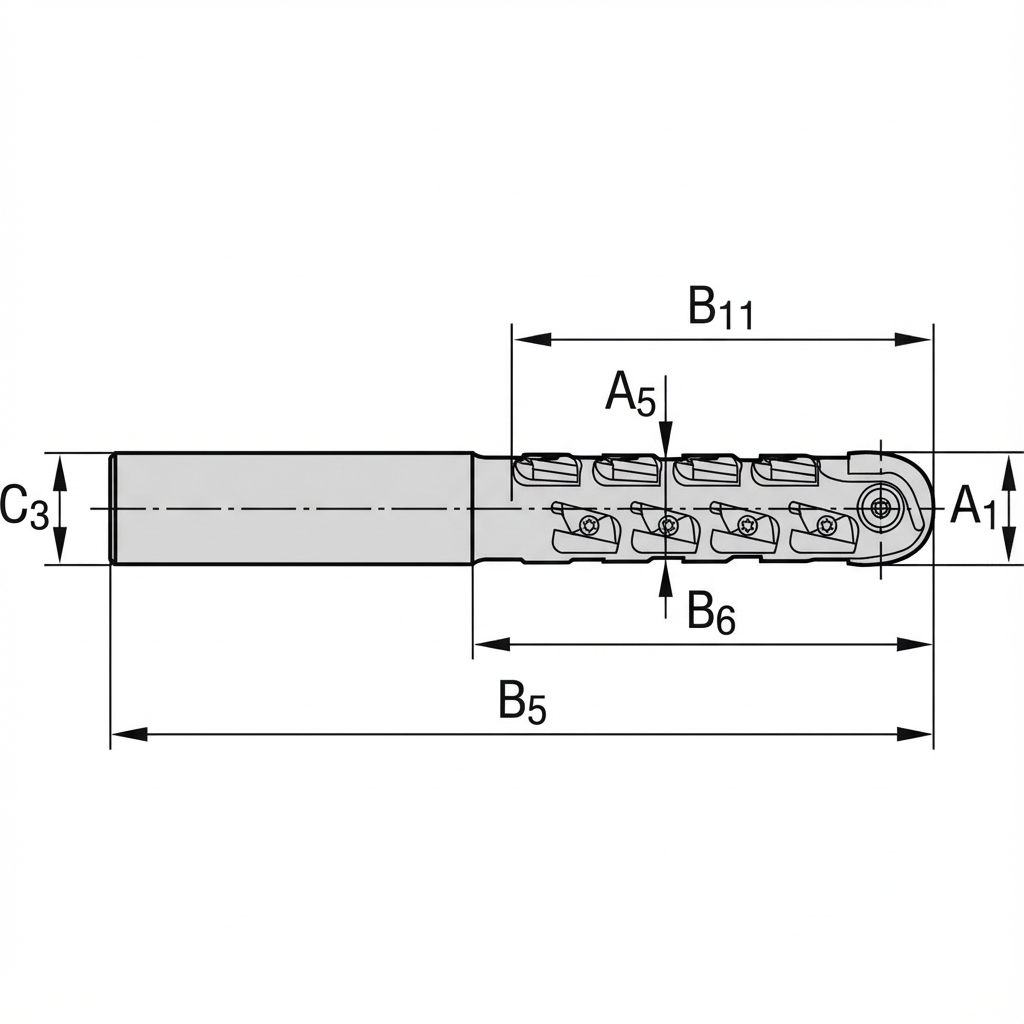

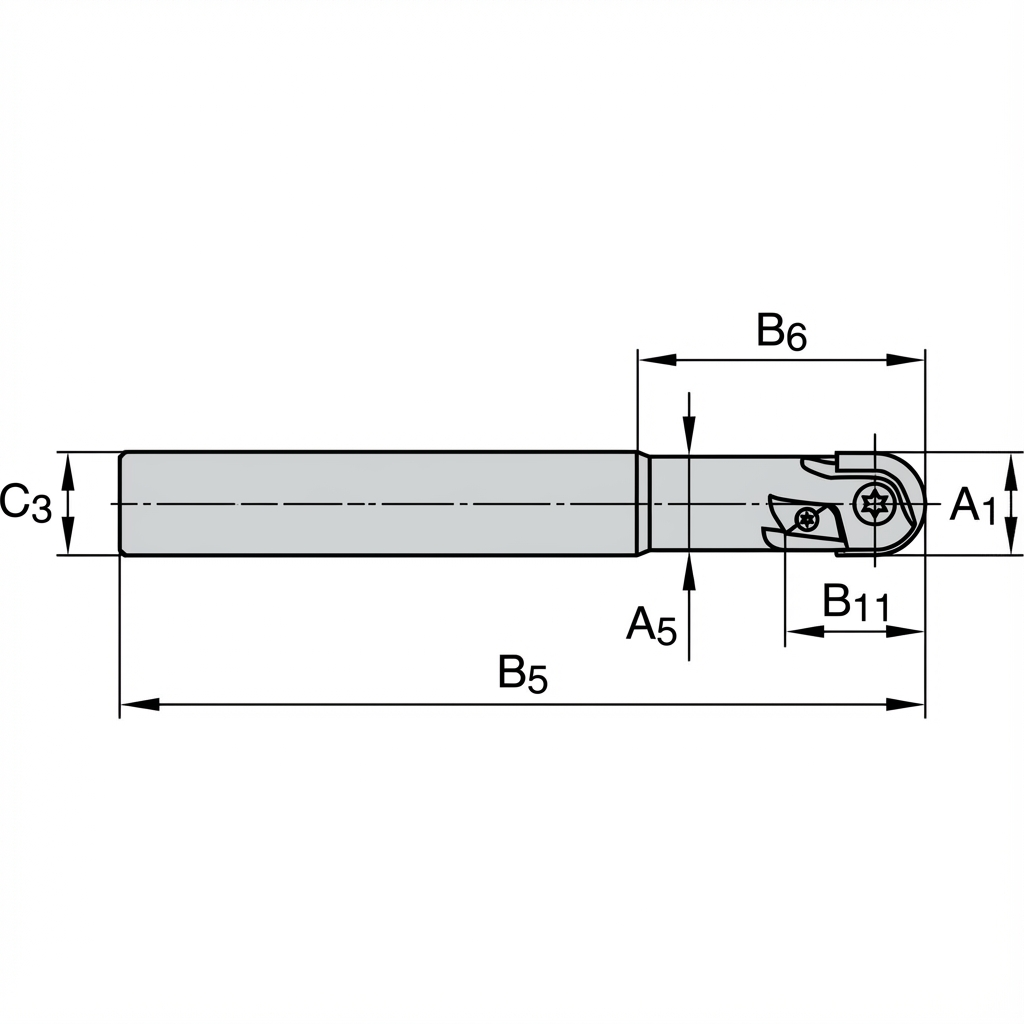

Dimension Table
| EdgeVend Article Number |
Manufacturer Part Number |
Cutting Diameter A1(mm) |
Theoretical / Profile radius G4(mm) | Overall Length B5(mm) |
Connection Size C3(mm) |
Max Depth of Cut B2(mm) |
Cutting Width B11(mm) |
Usable Length B6(mm) |
Body Diameter A3(mm) |
Hub Diameter A4(mm) |
Cutting Diameter 2 A2(mm) |
Number of Teeth z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EV-MB-0000299 | 6121223 | 25.0 | 12.5 | 230.0 | 25 | 120.0 | — | 140.0 | 23.0 | — | 25.0 | 10 |
| EV-MB-0000300 | 6121222 | 25.0 | 12.5 | 190.0 | 25 | 46.0 | — | 70.0 | 23.0 | — | 25.0 | 3 |
| EV-MB-0000301 | 6121224 | 25.0 | 12.5 | 190.0 | 25 | 80.0 | — | 100.0 | 23.0 | — | 25.0 | 6 |
| EV-MB-0000302 | 6121226 | 32.0 | 16.0 | 250.0 | 32 | 120.0 | — | 140.0 | 29.0 | — | 32.0 | 17 |
| EV-MB-0000303 | 6121225 | 32.0 | 16.0 | 210.0 | 32 | 49.0 | — | 80.0 | 29.0 | — | 32.0 | 5 |
| EV-MB-0000304 | 6121227 | 32.0 | 16.0 | 210.0 | 32 | 80.0 | — | 100.0 | 29.0 | — | 32.0 | 11 |
| Please choose options to see the values. | ||||||||||||
Compatible inserts
| Insert EdgeVend Article Number |
Insert Manufacturer Part Number |
Insert | Grade | Corner Radius(mm) | ISO Suitability | Price | Quantity | Direct add to Cart |
|
|---|---|---|---|---|---|---|---|---|---|
| Select a Body variant to see compatible inserts. | |||||||||
| ISO | Material | Operation | Stage | Coolant | vc min(m/min) | vc typ(m/min) | vc max(m/min) | fz min(mm/tooth) | fz typ(mm/tooth) | fz max(mm/tooth) | ap min(mm) | ap typ(mm) | ap max(mm) | ae% max(%) | Ramp max(°) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Start here: Select the three options to load recommendations. | |||||||||||||||
Mandrins compatibles
Table of Chucks that go along with Mill
